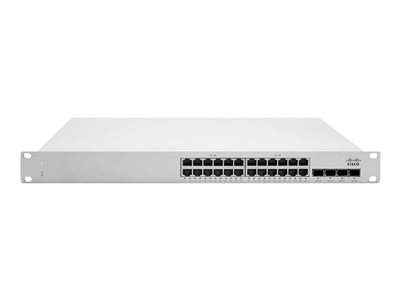

The Cisco Meraki MS225-24 is a 24-port cloud-managed stackable L2 enterprise-class access switch with four SFP+ uplinks and support for Cisco's Redundant Power System (RPS) for mission critical environments. The MS225 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS225 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
- Product Description Cisco Meraki Cloud Managed MS225-24 - switch - 24 ports - managed - rack-mountable
- Device Type Switch - 24 ports - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 24 x 10/100/1000 + 4 x SFP+
- Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding performance: 95.24 Mpps
- MAC Address Table Size 16K entries
- Jumbo Frame Support 9600 bytes
- Routing Protocol IGMP
- Remote Management Protocol HTTP, SNMP
- Features LLDP support, cable test, QoS, E-mail alert, Zero Touch Auto Provisioning, auto-uplink (auto MDI/MDI-X), auto-negotiation, DHCP client, Syslog support, e-mail notification, push notification, RSTP support, STP support, Broadcast Storm Control, Link Aggregation, IGMP snooping, Multicast filtering function, RBAC, 802.1x authentication, Port Security, DHCP snooping, BPDU, ACL support, Root Guard, flow control, static routing, DHCP relay, fanless
- Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1x
- Power AC 120/230 V (40 - 60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 19.1 in x 9.8 in x 1.7 in
- Weight 6.02 lbs
- Manufacturer Warranty Limited lifetime warranty
|
