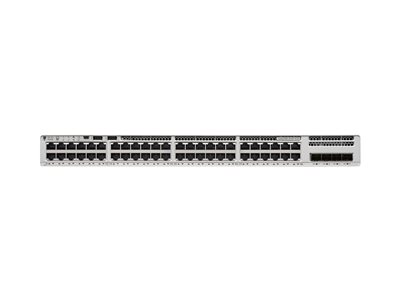

- Product Description Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed
- Enclosure Type Rack-mountable
- Subtype Gigabit Ethernet
- Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
- Power Over Ethernet (PoE) PoE+
- Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 261.9 Mpps
- Capacity Virtual networks: 1 ¦ MAC addresses: 16000 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ Switched virtual interfaces (SVIs): 512 ¦ Queues per port (egress): 8
- Jumbo Frame Support 9198 bytes
- Routing Protocol OSPF, RIP, VRRP, policy-based routing (PBR), MSTP
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF
- Features EIGRP Stub Routing, Rapid PVST+, SRR, RSPAN, CoS, FNF, DSCP support, MACsec support, 6MB packet buffer, CoPP, SSM, Blue Beacon LED, EEE, SPAN, EEM, PIM, FHS, PVLAN support, Superior QoS, CIR
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
- Power AC 100-240 V - power supply not installed
- Dimensions (WxDxH) 17.5 in x 1.7 in x 11.3 in
- Weight 12.13 lbs
- Manufacturer Warranty Limited lifetime warranty
|
