Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements.

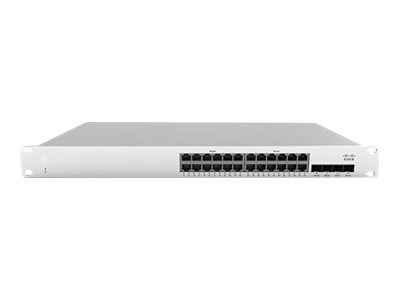

- Product Description Cisco Meraki Cloud Managed MS210-24P - switch - 24 ports - managed - rack-mountable
- Device Type Switch - 24 ports - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- Power Over Ethernet (PoE) PoE+
- PoE Budget 370 W
- Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding rate: 41.67 Mpps
- MAC Address Table Size 16K entries
- Jumbo Frame Support 9578 bytes
- Remote Management Protocol SNMP
- Features Auto-uplink (auto MDI/MDI-X), crossover detection, auto-negotiation, DHCP client, Syslog support, ALERT notification, RSTP support, STP support, Broadcast Storm Control, LLDP support, LACP, RBAC, 802.1x authentication, Port Security, DHCP snooping, BPDU, Root Guard, ACL support, flow control, static routing, DHCP relay, fanless
- Compliant Standards IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3at, IEEE 802.3af
- Power AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH) 19.1 in x 9.8 in x 1.7 in
- Weight 8.18 lbs
- Manufacturer Warranty Limited lifetime warranty
|
