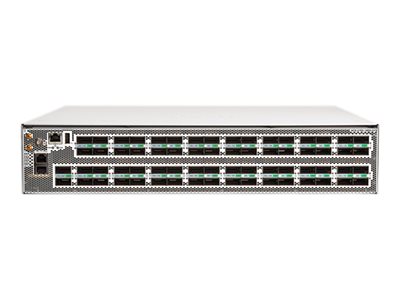

- Product Description Cisco Network Convergence System 57D2 Fixed Base Chassis - router - rack-mountable
- Device Type Router
- Enclosure Type Rack-mountable - 2U
- Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
- Performance Throughput: 7.2 Tbps ¦ Route scale: up to 2.3M FIB entries
- Capacity QoS queues: 8
- Jumbo Frame Support 9216 bytes
- Network / Transport Protocol IPSec, IPv4, IPv6
- Routing Protocol ECMP, VRRP, OSPF, OSPFv2, OSPFv3, IS-IS, IS-ISv6, BGP, MPLS
- Remote Management Protocol IPv4, IPv6, NETCONF, YANG, SNMP 3, MIB, XML, JSON, GPB, SNMP, OAM, LSP
- Features MACsec support, SyncE, PTP, built-in ASIC, on-chip TCAM, EVPN, auto provisioning, ToD support, hot swappable 4 fans, LACP, ACL support, EFP, VLAN trunking, layer 3 routing, layer 3 ingress and egress ACL, BFD, L3VPN support, LDP, MPLS traffic engineering, EoMPLS, SR, SR-TE, TI-LFA, QoS, HQoS, DSCP Marking, PQ, ZTP, SZTP, AAA, RPL support, Ingress Layer 2 MAC ACLs
- Compliant Standards IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ad (LACP)
- Dimensions (WxDxH) 17.3 in x 23.6 in x 3.4 in
- Weight 52.91 lbs
- System Requirements Cisco IOS XR 7.8.1
- Pricing Type Flexible Consumption Model
- Manufacturer Warranty 1-year warranty
|
