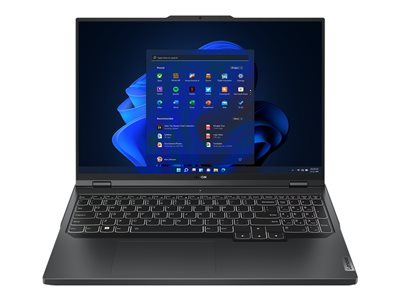

Lenovo Legion Pro 5 16ARX8 - 16" - AMD Ryzen 5 - 7645HX - 16 GB RAM - 1 TB SSD - US English
Lenovo Legion Pro 5 16ARX8 - 16" - AMD Ryzen 5 - 7645HX - 16 GB RAM - 1 TB SSD - US English
- Price:
$1,512.99
- Availability:
- Mfr #: 82WM0001US
- UNSPSC #: 43211503
- Item #: 010603643
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Color | Onyx gray |
| Case Material | Aluminum (top), polycarbonate ABS (bottom) |
| Surface Finish | Anodizing |
| Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Features | Legion Coldfront 5.0 cooling system |
| Included Accessories | Power adapter |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3, TUV Rheinland Low Blue Light (Hardware Solution) |
| Localization | Language: English / region: United States |
Dimensions & Weight
| Dimensions (WxDxH) | 14.3 in x 10.2 in x 1.1 in |
| Weight | 5.51 lbs |
Memory
| RAM | 16 GB (2 x 8 GB) |
| Max RAM Supported | 32 GB |
| Technology | DDR5 SDRAM |
| Rated Speed | 5200 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots Qty | 2 |
| Empty Slots | 0 |
Audio & Video
| Gaming | Yes |
| Camera | Yes - 1080p |
| Camera Features | Fixed focus, e-camera shutter |
| Sound | Stereo speakers, dual array microphone |
| Codec | Realtek ALC3306 |
| Compliant Standards | High Definition Audio |
| Audio Features | Output: Nahimic audio |
Communications
| Wireless | Bluetooth 5.1, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Network Interface | Gigabit Ethernet |
| Features | Dual stream (2x2) |
AC Adapter
| Input | AC 100-240 V (50/60 Hz) |
| Output | 300 Watt |
Input
| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes (RGB) |
| Keyboard Layout | US English |
| Numeric Keypad | Yes |
| Features | 4-Zone RGB backlight |
Storage
| Main Storage | 1 TB SSD M.2 2280 PCIe 4.0 x4 - NVM Express (NVMe) |
Connections & Expansion
| Slots | 1 x PCI Express 4.0 x4 (1 free) |
| Interfaces Details | 3 x USB 3.2 Gen 1 ¦ USB 3.2 Gen 1 (Always On) ¦ USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) ¦ USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) (140W Power Delivery) ¦ HDMI ¦ Headphone/microphone combo jack (mini-phone 3.5 mm) ¦ LAN (RJ-45) |
Sustainability Information
| TCO Certified | - |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year - pick-up and return |
Battery
| Technology | Lithium polymer |
| Capacity | 80 Wh |
| Run Time | Up to 6.8 hours |
| Battery Run Time | Local video (1080p) playback time (150 nits): up to 6.8 hours |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 95% |
General
| Product Type | Notebook - 180-degree hinge design |
| Operating System | Windows 11 Home - English |
Software
| Software Included | Microsoft Office (Trial) |
Processor / Chipset
| Features | Integrated memory controller |
Display
| Type | 16" - IPS |
| Resolution | 2560 x 1600 (WQXGA) |
| V-Sync Rate at Max Res. | 165 Hz |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 300 cd/m² |
| Color Gamut | 100% sRGB |
| Features | Anti-glare, NVIDIA G-SYNC compatible, FreeSync Technology, Low Blue Light technology, Dolby Vision, X-Rite factory color calibration |
