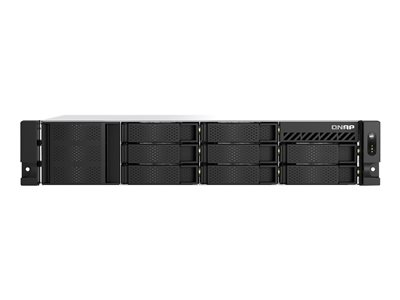

QNAP 2U 8-BAY SHORT DEPTH RACK
QNAP 2U 8-BAY SHORT DEPTH RACK
- Price:
$2,429.99
- Availability:
- Mfr #: TS-855EU-RP-8G-US
- UNSPSC #: 43221706
- Item #: 010614958
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Processor / Memory
| Processors Installed | 1 x Intel Atom C5125 2.8 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 1 |
| RAM | 8 GB (installed) / 64 GB (supported) - DDR4 |
| Flash Memory Installed | 5 GB |
Miscellaneous
| Cables Included | 1 x network cable |
| Features | Secure Erase, built-in 3 x 60 mm cooling fans, alarm buzzer, dual boot, S.M.A.R.T. support, wake on LAN, array roaming, on/off power switch, reset switch |
| Compliant Standards | TLS v1.0, TLS v1.1, TLS v1.2, TLS v1.3 |
| Included Accessories | 24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), 2 x power cables |
Networking
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Network / Transport Protocol | IPv4, IPv6, DDNS, DHCP, SMB, iSCSI, FTP, QuFTP, SFTP, TFTP |
| Remote Management Protocol | SNMP 2, SNMP 3, SSH, Telnet, HTTP, HTTPS, TFTP, SFTP, RADIUS |
| Network Services Compatibility | Microsoft CIFS, Apple File Protocol (AFP), Server Message Block (SMB), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Web-based Distributed Authoring and Versioning (WebDAV), DHCP, DDNS, HTTP, HTTPS, FTP, SFTP |
| Performance | Concurrent connections (CIFS): 2000 - (with maximum memory) ¦ Maximum pool size: 5 PB ¦ Maximum number of storage pool: 128 ¦ Maximum shared folder size: 5 PB ¦ Maximum number of shared folder: 256 ¦ Maximum LUN size: 1024 TB ¦ Maximum number of targets LUN: 128 ¦ Minimum snapshot interval: 1 minute ¦ Maximum FTP connection: 1024 ¦ Local user account: 16000 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32 ¦ Maximum number of version control: 64 |
| Features | RAID migration, EXT4 file system, Access Control List (ACL) support, port trunking, DHCP server, VLAN support, anti-malware protection, firewall protection, Qsync, hybrid backup sync, Qsirch, QuMagie, VPN support, LDAP support, RADIUS support, file station, SQL Server, Qfiling, QmailAgent, QuWAN, Q'center (NAS CMS), built-in hardware transcoding, wake on LAN (WOL), Jumbo Frames support, SFTP server |
| Encryption Algorithm | AES-NI, FIPS 140-2, 256-bit AES |
Storage Controller
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID TM, RAID TP |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
General
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Width | 17 in |
| Depth | 11.7 in |
| Height | 3.5 in |
| Weight | 17.97 lbs () |
| Built-in Devices | LED panel |
| Localization | United States |
Expansion / Connectivity
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4 |
| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 4 x USB 3.2 Gen 1 - Type A |
Power
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 78.73 Watt (with drives fully populated) |
| Power Provided | 300 Watt |
Software / System Requirements
| Storage Operating System | QNAP QuTS hero h5.1.0 / QTS 5.1.0 |
| Software Included | IronWolf Health Management, McAfee |
| OS Required | Apple MacOS X 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
