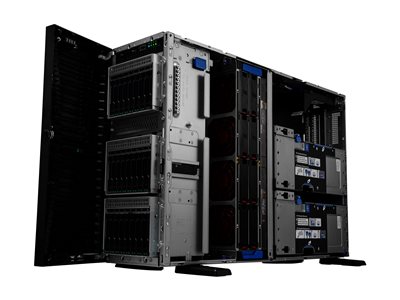

HPE ML350 GEN11 4410Y 1P 32G 4LFF SVR
HPE ML350 GEN11 4410Y 1P 32G 4LFF SVR
- Price:
$3,292.99
- Availability:
- Mfr #: P53564-001
- UNSPSC #: 43211501
- Item #: 010617488
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
Miscellaneous
| Included Accessories | 3 standard fans |
| Theft/Intrusion Protection | Padlock eye, security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ACPI 6.1, ASHRAE Class A3, ASHRAE Class A4, FIPS 140-3, ErP Lot 9 |
Networking
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
Dimensions & Weight
| Width | 6.9 in |
| Depth | 28 in |
| Height | 18.2 in |
| Weight | 60.45 lbs |
Hard Drive
| Type | No HDD |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
Graphics Controller
| Video Memory | 16 MB |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Sustainability Information
| ENERGY STAR Certified | Yes |
Storage Controller
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | Intel VROC SATA Software RAID |
| Channel Qty | 14 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
General
| Type | Server |
| Product Form Factor | Tower - 4U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 4 |
| Localization | Region: Americas |
Processor / Chipset
| CPU | Intel Xeon Silver 4410Y |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| CPU Socket | LGA4677 Socket-E |
| Chipset Type | Intel C741 |
Expansion / Connectivity
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" LFF |
| Slots | 4 (total) / 4 (free) x PCIe 5.0 x16 (x8 mode) |
| Interfaces | 1 x VGA ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - RJ-45 ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 top) ¦ 1 x USB 2.0 (1 bottom) ¦ 1 x HPE iLO - Type A (1 in front) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
Operating System / Software
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning |
RAM
| Slots | 16 (total) / 15 (empty) |
| Features | Dual rank, HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only, Online Spare Memory |
| Configuration Features | 1 x 32 GB |
Optical Storage
| Type | No optical drive |
