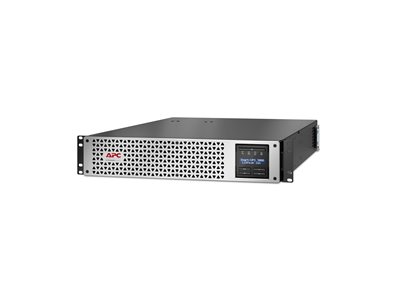

APC Smart-UPS - UPS - line Interactive, lithium-ion, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect port+SmartSlot, AVR, LCD - 2700 Watt - 3000 VA
APC Smart-UPS - UPS - line Interactive, lithium-ion, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect port+SmartSlot, AVR, LCD - 2700 Watt - 3000 VA
- Price:
$3,811.99
- Availability:
- Mfr #: SMTL3KRM2UCL
- UNSPSC #: 44103116
- Item #: 010719200
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rack mounting rails, rack mounting brackets, mounting screw, washer |
| Cables Included | Power cable 8 ft ¦ USB cable - external ¦ Network cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 150000 US Dollars |
| Features | E-mail notification, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), firmware upgradable, visible alarm, Auto-Sensing Technology, SmartConnect port |
| Compliant Standards | cULus, IP20, Energy Star 2.0 |
Networking
| Remote Management Interface | Ethernet, USB, serial |
Dimensions & Weight
| Width | 17 in |
| Depth | 26.9 in |
| Height | 3.4 in |
| Weight | 75.44 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 5 years |
Battery
| Technology | Lithium ion |
| Run Time (Up To) | 5.3 min at full load |
| Recharge Time | 2 hours |
| Transfer Time | 10 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dB |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black with silver bezel |
Environmental Standards
| ENERGY STAR | Yes |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 110/120/125 V |
| Input Voltage Range | AC 82 - 144 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 1 x power NEMA L5-30R ¦ 6 x power NEMA 5-20R |
| Output Voltage | AC 110/120/125 V 50/60 Hz |
| Power Capacity | 2700 Watt / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 459 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.3% at 100% Load, 98.9% at 50% Load, 98.6% at 75% Load, 98.8% at 25% Load |
| Total Harmonic Distortion (THD) | 5 % |
Expansion / Connectivity
| Interfaces | 1 x management (Ethernet) ¦ 1 x serial ¦ 1 x USB |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 38.6 in |
| Shipping Depth | 24 in |
| Shipping Height | 10 in |
| Shipping Weight | 94.05 lbs |
