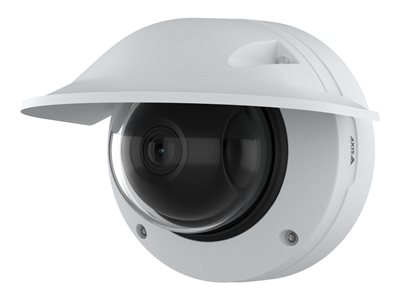

- Product Description AXIS Q3628-VE - network surveillance camera - dome - TAA Compliant
- Device Type Network surveillance camera - pan / tilt / zoom - dome - outdoor - vandal / weatherproof
- Audio Yes: two-way audio capability
- Dimensions (WxDxH) 7.2 in x 7.2 in x 5.6 in
- Weight 4.63 lbs
- Color White, NCS S 1002-B
- Connectivity Technology Wired
- Camera Color - Day&Night
- Optical Zoom 2.08 x
- Max Resolution 3840 x 2160
- Frame Rate (max) 60 frames per second
- Motion Detection Yes
- Optical Sensor Type PS RGB CMOS - 1/1.2" - 8 MP
- Minimum Illumination 0.07 lux - color - F1.6 - 50 IRE ¦ 0.01 lux - B&W - F1.6 - 50 IRE
- Focal Length Control Vari-focal
- Focal Length 6.2 mm - 12.9 mm
- Focus Adjustment Motorized (min distance 5 ft)
- Lens Iris F/1.6-2.9 (P-Iris)
- Panning Range (degree) -190 to +190
- Tilting Range (degree) -8 to +75
- Interfaces Ethernet 10Base-T/100Base-TX/1000Base-T
- Voltage DC 10 - 28 V / PoE
- Features Electronic image stabilization, Axis Edge Vault, AXIS Object Analytics, Lightfinder 2.0 technology, Forensic WDR, IR Corrected lens, infrared-cut filter, deep learning processing unit (DLPU), 16:10 aspect ratio, 16:9 aspect ratio, 4:3 aspect ratio, 12 video streams, Adaptive Bitrate (ABR), low latency mode, Multi-Bitrate (MBR), Variable Bitrate (VBR), video streaming indicator, Zipstream technology, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 180° image rotation, 270° image rotation, 90° image rotation, barrel distortion correction, brightness control, compression, contrast control, Corridor mode, day/night threshold, defogging, dynamic text overlay, exposure mode, exposure zone, image mirror, image overlay, polygon privacy mask, saturation control, sharpness control, target aperture, tone mapping, white balance, auto AGC, full duplex audio, half duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, human detection, Vehicle Detection, Line Crossing Detection, object stops in area detection, TPM 2.0 module, aluminum housing, polycarbonate bubble
- TAA Compliant Yes
- Manufacturer Warranty 5-year warranty
- Environmental Parameters (operating) -58 °F - 131 °F; 10 - 100% RH (condensing) relative humidity
|
