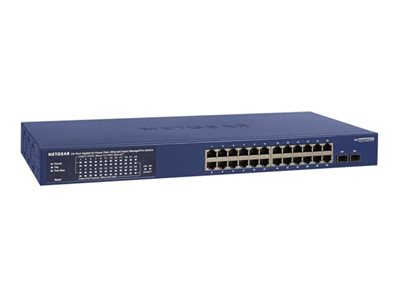

NETGEAR 24P GE POE SMART SWIT
NETGEAR 24P GE POE SMART SWIT
- Price:
$436.99
- Availability:
- Mfr #: GS724TPP-300NAS
- UNSPSC #: 43222612
- Item #: 010741778
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Foot pad set, power cord |
| Rack Mounting Kit | Included |
| MTBF | 1,310, 422 hours |
| Localization | Latin America, North America |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 8.16 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% RH (non-condensing) |
General
| Device Type | Switch - 24 ports - L3 Lite - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 380 W |
| Performance | Bandwidth (full duplex): 52 Gbps ¦ Forwarding performance (64-byte packet size): 38.6 Mpps ¦ 1 Gbps copper latency (64-byte packets): 1.892 µs ¦ 1 Gbps copper latency (1518-byte packets): 1.917 µs ¦ 1 Gbps copper latency (9216-byte packets): 1.927 µs |
| Capacity | Priority queues: 8 ¦ Multicast groups: 512 ¦ VLANs supported: 256 ¦ DHCP snooping entries: 256 ¦ ACL: 100 ¦ IGMP multicast groups: 128 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMP, static IP routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
| Encryption Algorithm | TLS 1.2 |
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Features | Flow control, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, MLD snooping, IPv4 support, LACP, DHCP client, 512KB packet buffer, GVRP, dual firmware images, loop prevention, static routing, CoS, SP, cloud managed, DSCP support, 3 fans, Protocol-based VLANs support, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, DNS client, Voice VLAN, ZTP, EEE, WRR, Auto VoIP, VLAN Tagging, port trunking, Advanced QoS, LAG, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Processor | 1 x ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 64 MB |
| Status Indicators | Port transmission speed, PoE, link/activity |
Expansion / Connectivity
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP uplink |
Power
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V |
| Power Consumption Stand by | 13.3 Watt |
