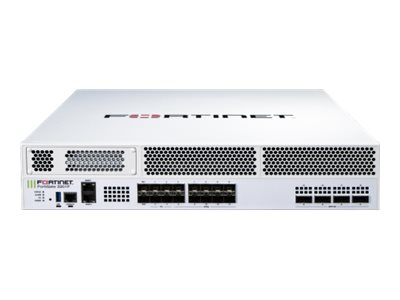

The FortiGate 3200F series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.
- Product Description Fortinet FortiGate 3200F - security appliance - with 1 year FortiCare Premium Support + 1 year FortiGuard Unified Threat Protection (UTP)
- Device Type Security appliance
- Bundled Services 1 year FortiCare Premium Support + 1 year FortiGuard Unified Threat Protection (UTP)
- Form Factor Front to back airflow rack-mountable - 2U
- Processor Fortinet FortiASIC CP9/NP7
- Hard Drive 1 TB x 2
- Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet
- Performance IPS throughput (enterprise traffic mix): 63 Gbps ¦ NGFW throughput (enterprise traffic mix): 47 Gbps ¦ Threat protection throughput (enterprise traffic mix): 45 Gbps ¦ Firewall throughput (1518-byte UDP): 387 Gbps ¦ Firewall throughput (512-byte UDP): 385 Gbps ¦ Firewall throughput (64-byte UDP): 187.5 Gbps ¦ IPv6 firewall throughput (1518-byte UDP): 387 Gbps ¦ IPv6 firewall throughput (512-byte UDP): 385 Gbps ¦ IPv6 firewall throughput (86-byte UDP): 187.5 Gbps ¦ Firewall latency (64-byte UDP): 3.42 µs ¦ Firewall throughput: 267.75 Mpps ¦ VPN throughput (512-bit IPSec): 105 Gbps ¦ VPN throughput (SSL): 11 Gbps ¦ SSL inspection throughput: 29 Gbps ¦ Application control throughput: 109 Gbps ¦ CAPWAP throughput: 65 Gbps
- Capacity Concurrent TCP sessions: 70000000 ¦ New TCP sessions per second: 800000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 30000 ¦ SSL inspection concurrent sessions: 7400000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 300 ¦ Number of FortiAP devices: 4096 ¦ Number of FortiAP devices (tunnel): 2048 ¦ Number of FortiToken devices: 20000 ¦ Number of registered FortiClients: 20000
- Included Accessories 2 x SR 10Gbps SFP+ transceivers
- Power AC 100-240 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.4 in x 23.9 in x 3.5 in
- Weight 44.09 lbs
|
