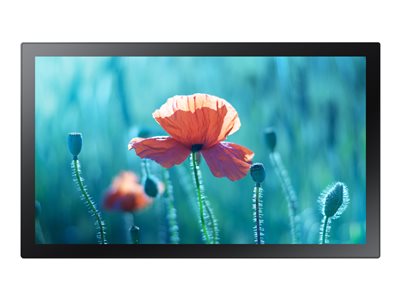

Samsung QB13R-TM QBR-TM Series - 13" LED-backlit LCD display - Full HD - for digital signage / interactive communication
Samsung QB13R-TM QBR-TM Series - 13" LED-backlit LCD display - Full HD - for digital signage / interactive communication
- Price:
$612.99
- Availability:
- Mfr #: QB13R-TM
- UNSPSC #: 43211902
- Item #: 010747619
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Connections
| Connector Type | HDMI input ¦ USB ¦ Audio line-out ¦ RS-232 input ¦ LAN |
Miscellaneous
| Compliant Standards | EMC Class B, IP5X, HDCP 2.2, Safety 60950-1, Safety 62368-1 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
General
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 27.5 Watt |
| Diagonal Class | 13" |
| Commercial Use | Yes - interactive digital signage |
| Combined With | Touchscreen (multi touch) |
| Series | QBR-TM Series |
| Platform | Tizen OS |
| Operating System | Tizen OS 4.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| Picture Enhancements | 45% Color Gamut |
| Design | Slim Design |
| Dimensions | Without stand |
| Width | 12.7 in |
| Depth | 1.2 in |
| Height | 7.6 in |
| Weight | 2.43 lbs |
Media Player
| USB Port | Yes |
| USB Ports Qty | 1 |
| Configuration | 8 GB |
Network & Internet Multimedia
| Connectivity | Wi-Fi, LAN |
Stands & Mounts
| Stand | Included |
| Stand Design | Tabletop/kickstand |
| Flat Panel Mount Interface | 100 x 100 mm |
| VESA Compatibility | Yes |
Dimensions & Weight (Shipping)
| Width (Shipping) | 14.8 in |
| Depth (Shipping) | 9.8 in |
| Height (Shipping) | 5.2 in |
| Weight (Shipping) | 4.41 lbs |
Power
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Sleep | 0.5 Watt |
Display
| LCD Display Technology | ADS |
| Pixel Pitch | 0.153 mm |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 25% Glass Haze |
| Image Contrast Ratio | 600:1 |
| Dynamic Contrast Ratio | 10000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Touchpoints Qty | 10 |
| Response Time | 30 ms |
| Commercial Features | SMART Signage Platform, MagicInfo S Player |
| Operation Hours / Days | 16 / 7 |
| Additional Features | Capacitive touch technology, Center IR, SSSP, Samsung Workspace secured by Knox |
