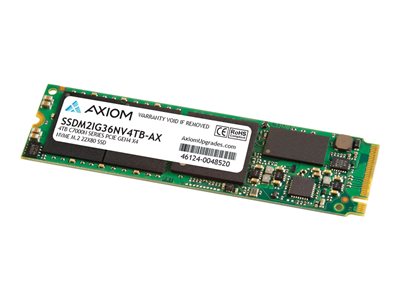

AXIOM 4TB C7000N SERIES PCIE GEN4 X4 NVME M.2 22X80 SSD - 3D NAND
AXIOM 4TB C7000N SERIES PCIE GEN4 X4 NVME M.2 22X80 SSD - 3D NAND
- Price:
$2,413.99
- Availability:
- Mfr #: SSDM2IG36NV4TB-AX
- UNSPSC #: 43201830
- Item #: 010741713
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | RoHS |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
General
| Device Type | Solid state drive - internal |
| Capacity | 4 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Bytes per Sector | 512 |
| Features | IG5236 controller, dynamic SLC caching, NVM Express (NVMe) 1.4, 3D NAND Technology, Global Wear Leveling, StaticDataRefresh Technology, Garbage Collection technology, NVM Express (NVMe) deallocate support, Host Memory Buffer (HMB), DDR4 DRAM Cache, Low-Density Parity Check, Dynamic and Static Wear Leveling, NVMe Secure Erase support, S.M.A.R.T. |
| Width | 0.9 in |
| Depth | 3.1 in |
| Weight | 1.41 oz |
Expansion & Connectivity
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
Performance
| Drive Writes Per Day (DWPD) | 0.46 |
| SSD Endurance | 2000 TB |
| Internal Data Rate | 7415 MBps (read) / 6800 MBps (write) |
| Maximum 4KB Random Write | 1100000 IOPS |
| Maximum 4KB Random Read | 730000 IOPS |
Reliability
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
Power
| Power Consumption | 9.1 Watt (active) ¦ 3 mW (idle) |
