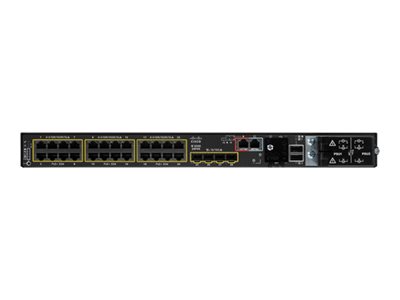

- Product Description Cisco Catalyst IE9320 Rugged Series - switch - 24 ports - managed - rack-mountable
- Device Type Switch - 24 ports - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE) PoE+
- Performance Forwarding rate: 64 Gbps ¦ Bandwidth (full duplex): 128 Gbps
- Capacity Queues: 8 ¦ IGMP multicast groups: 1000 ¦ VLANs supported: 1024 ¦ IPv4 routes: 4000 ¦ Indirect IPv6 routes: 2000 ¦ STP instances: 128 ¦ ACL entries: 1408 ¦ Switched virtual interfaces (SVIs): 984 ¦ SXP Sessions: 200
- MAC Address Table Size 16K entries
- Routing Protocol IGMP, IGMPv2, IGMPv3, OSPF, OSPFv3, HSRP, BGP, EIGRP, IS-IS, MSDP
- Remote Management Protocol SNMP, DHCP, NETCONF, HTTPS, RADIUS, TACACS+, YANG, RESTCONF
- Features Rapid PVST+, PVST+, PVRST, RSPAN, SPAN, STP support, Storm Control, VTP v.2, VTP v.3, L2TP support, Q-in-Q tunneling, EtherChannel support, IGMP snooping, MLD snooping, MIB, Syslog support, DHCP server, EEM, DHCPv6 guard, IP source guard, router advertisement guard, IPv6 support, DAD, FNF, NEAT, DHCP snooping, DAI, AAA, SCP, PQ, MQC, QoS, DSCP support, LLQ, static routing, OSPF, RIP, policy based routing, NTP, BFD, REP, HSR, PRP, SGACL, PIM, Cisco EnergyWise technology
- Compliant Standards IEEE 802.1Q, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ae, IEEE 802.1p, IEEE 802.1D, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 1588v2, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Power Redundancy Yes
- Manufacturer Warranty 5-year warranty
|
