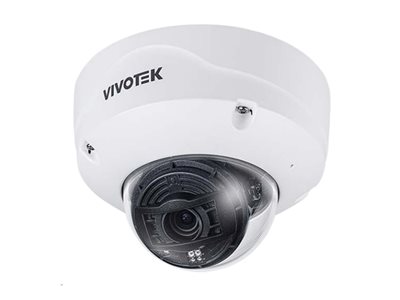

Vivotek S Series FD9391-EHTV-v2 - network surveillance camera - dome
Vivotek S Series FD9391-EHTV-v2 - network surveillance camera - dome
- Price:
$1,151.99
- Availability:
- Mfr #: FD9391-EHTV-V2
- UNSPSC #: 43222631
- Item #: 010817638
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, conduit bracket, I/O cable |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at, IK10, NDAA, EN 55035 Class B, EN 55032, UKCA, FCC Part 15 Subpart B, RCM, AS/NZS CISPR 32 Class A, VCCI-CISPR 32:2016 Class B, ICES-003 issue 7, UL 62368-1, IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471, BS EN IEC 62368-1, IEC 62262 IK10, IEC 60529 IP66, IS 13252, CNS 15936, CNS 15598-1:2020, IP67, IP6K9K, NEMA Type 4X |
Lens Construction
| Type | Motorized zoom |
| Focal Length | 4.4 mm - 10.2 mm |
| Lens Iris | F/1.38-2.24 (P-Iris) |
| Focus Adjustment | Motorized |
| Horizontal Field of View (degree) | 43 - 110 |
| Vertical Field of View (degree) | 24 - 57 |
| Diagonal Field of View (degree) | 49 - 24 |
Tilting
| Range (degree) | 80 |
Panning
| Range (degree) | 175 |
Software / System Requirements
| Software Included | Trend Micro IoT Security (3 years trial) |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12, Google Chrome OS 58 or later |
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, UDP, UPnP |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Image Sensor
| Type | 8 MP CMOS 1/1.8" |
Environmental Parameters
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | -76 °F |
| Relative Humidity (operating) | 98% RH (non-condensing) |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, G.711, MPEG2 AAC-LC |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.9 in |
| Depth | 4.8 in |
| Weight | 3.06 lbs |
Camera
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - water resistant / vandal resistant |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Digital Zoom | 48 |
| Exposure Range | 1 sec - 1/100000 sec |
| Minimum Illumination | 0.01 lux - color - F1.38 ¦ 0.005 lux - B&W - F1.38 ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 164 ft |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | ePTZ, Supreme Night Visibility, Smart Stream II, Wide Dynamic Range (WDR) Pro, Smart VCA, 3 video streams, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, LED indicator, Backlight Compensation (BLC), Highlight Compensation (HLC), Privacy Mask Function, Pixel Calculator, e-mail alerts, shock detection, Audio Detection, Camera Tampering Detection, brute force delay protection, embedded SOC processor, adjustable gain control, white balance, exposure control, Defog, Event Notification, signed firmware, remote focus, remote zoom |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone ¦ Audio line out ¦ 2 x digital input ¦ 2 x digital input ¦ USB - Micro-USB Type B |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS 1.2 |
Power
| Power Requirements | DC 12 V / AC 24 V / PoE Class 4 |
