The FortiGate 901G Series NGFW combines AI-powered security and machine learning to deliver Threat Protection at any scale. Get deeper visibility into your network and see applications, users, and devices before they become threats.
Powered by a rich set of AI/ML security capabilities that extend into an integrated security fabric platform, the FortiGate 901G Series delivers secure networking that is broad, deep, and automated. Secure your network end to end with advanced edge protection that includes web, content, and device security, while network segmentation and secure SD-WAN reduce complexity and risk in hybrid IT networks.
Universal ZTNA automatically controls, verifies, and facilitates user access to applications, reducing lateral threats by providing access only to validated users. Ultra-fast Threat Protection and SSL Inspection provides security at the edge you can see without impacting performance.

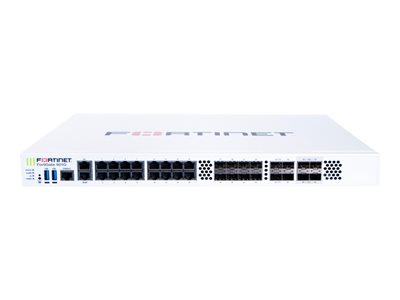

- Product Description Fortinet FortiGate 901G - security appliance
- Device Type Security appliance
- Form Factor Front and side to back rack-mountable - 1U
- Processor Fortinet FortiASIC CP9/NP7
- Hard Drive 480 GB x 2
- Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet
- Performance IPS throughput (enterprise traffic mix): 26 Gbps ¦ NGFW throughput (enterprise traffic mix): 22 Gbps ¦ Threat protection throughput (enterprise traffic mix): 20 Gbps ¦ IPv4 firewall throughput (1518-byte UDP): 164 Gbps ¦ IPv4 firewall throughput (512-byte UDP): 163 Gbps ¦ IPv4 firewall throughput (64-byte UDP): 153 Gbps ¦ IPv6 firewall throughput (1518-byte UDP): 164 Gbps ¦ IPv6 firewall throughput (512-byte UDP): 163 Gbps ¦ IPv6 firewall throughput (86-byte UDP): 153 Gbps ¦ Firewall latency (64-byte UDP): 3.78 µs ¦ Firewall latency (64-byte UDP, ULL ports): 2.5 µs ¦ Firewall throughput: 229.5 Mpps ¦ VPN throughput (512-bit IPSec): 55 Gbps ¦ VPN throughput (SSL): 10 Gbps ¦ SSL inspection throughput: 16.7 Gbps ¦ Application control (HTTP 64K): 74.8 Gbps ¦ CAPWAP Throughput (HTTP 64K): 70 Gbps
- Capacity Concurrent TCP sessions: 16000000 ¦ New TCP sessions per second: 720000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection CPS: 18000 ¦ SSL inspection concurrent sessions: 1600000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 10 ¦ Number of FortiSwitches: 96 ¦ Number of FortiAP devices: 1024 ¦ Number of FortiAP devices (tunnel): 512 ¦ Maximum number of FortiTokens: 5000
- Included Accessories 2 SX SFP transceivers
- Power AC 100-240 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17 in x 15 in x 1.7 in
- Weight 16.53 lbs
|
