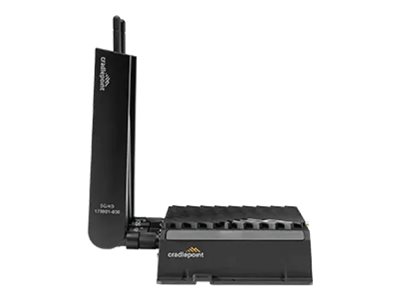

1YR NETCLOUD MOBILE ESSENTIALS PERPPLAN ADVANCED PLAN AND R920 ROUTER
1YR NETCLOUD MOBILE ESSENTIALS PERPPLAN ADVANCED PLAN AND R920 ROUTER
- Price:
$923.99
- Availability:
- Mfr #: MAA1-0920-C7A-NA
- UNSPSC #: 43222609
- Item #: 010355180
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat 7 |
Miscellaneous
| MTBF | 388,022 hour(s) |
| Localization | North America |
Dimensions & Weight
| Width | 5.3 in |
| Depth | 4.8 in |
| Height | 1.6 in |
| Weight | 20.99 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% |
Communications
| Type | Wireless cellular modem |
| Cellular Protocol | UMTS, WCDMA, HSPA+, LTE |
| Generation | 3G, 4G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B7, LTE B25, LTE B26, LTE B5, LTE B66, LTE B41, LTE B14, LTE B42, LTE B43, LTE B48, LTE B71 |
| Max Transfer Rate | 300 Mbps |
General
| Device Type | Wireless router |
| Bundled Services | 1 year NetCloud Mobile Essentials + Advanced Plan |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Stateful firewall throughput: 940 Mbps ¦ IPS throughput: 940 Mbps ¦ VPN throughput (IPSec): 100 Mbps ¦ LTE downlink bandwidth: 300 Mbps ¦ LTE uplink bandwidth: 150 Mbps |
| Capacity | Concurrent VPN tunnels: 20 ¦ Concurrent TCP sessions: 130000 ¦ Typical client count: 30 |
| Encryption Algorithm | WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal, FIPS 140-3 Level 1 |
| Features | Access Point operational mode, Wireless Client Mode, SMS remote control, 2x2 MIMO technology, 3GPP Release 11, Docker Support, dual core CPU, GPS/GLONASS/Galileo/BeiDou/QZSS support |
| Compliant Standards | IEEE 802.11k, IEEE 802.11v, UL, cUL, IC, FCC, RoHS, IP64, WEEE, E Mark, PTCRB, RoHS2, MIL-STD 810G 514.6, SAE J1455, EN 62368-1, IEC/EN 61373 Category 1 Class B, C1D2, CA65, CB Scheme |
| Built-in Devices | GNSS receiver, 8GB eMMC |
Line Properties
| Line Coding Format | 64 QAM |
Expansion / Connectivity
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Antenna: 2 x RP-SMA - Wi-Fi ¦ Antenna: 1 x RP-SMA - Bluetooth ¦ 1 x GPIO - 2 pin ¦ Antenna: 1 x SMA - GNSS antenna ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
Power
| Power Device | External power adapter |
| Power Consumption Operational | 14.5 Watt |
Antenna
| Antenna | External detachable |
