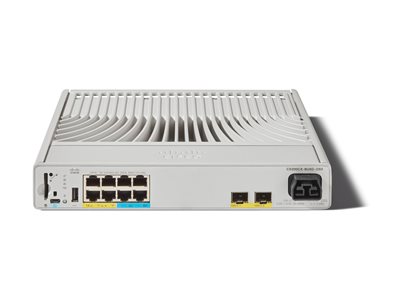

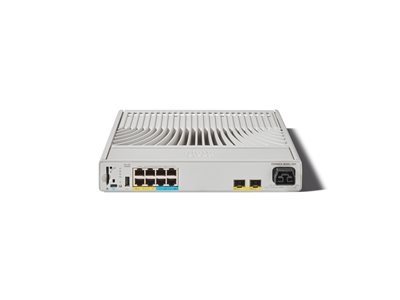

- Product Description Cisco Catalyst 9200CX - Network Advantage - switch - compact - 8 ports - managed - rack-mountable
- Device Type Switch - 8 ports - L3 - managed
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 4 x 10/100/1000 (UPOE) + 4 x 100/1000/2.5/5/10G (UPOE) + 2 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE) UPOE
- PoE Budget 240 W
- Performance Switching capacity: 128 Gbps ¦ Forwarding rate: 95.23 Mpps ¦ Packet buffer size: 6 MB
- Capacity Virtual networks: 16 ¦ IPv4 routes: 14000 ¦ Direct IPv4 routes: 10000 ¦ Indirect IPv4 routes: 4000 ¦ IPv4 routing entries: 4000 ¦ IPv6 routing entries: 2000 ¦ Multicast scale: 1000 ¦ QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ Flexible NetFlow entries: 16000 ¦ VLAN IDs: 4096 ¦ PVST instances: 128 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000
- MAC Address Table Size 32000 entries
- Jumbo Frame Support 9198 bytes
- Routing Protocol OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG
- Features Access Control List (ACL) support, Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, built-in ASIC, Control plane protection (CoPP), Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, Preboot Execution Environment
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt
- Power AC 115/230 V (50/60 Hz)
- Dimensions (WxDxH) 10.6 in x 9.6 in x 1.7 in
- Weight 7.01 lbs
- Manufacturer Warranty Limited lifetime warranty
|
