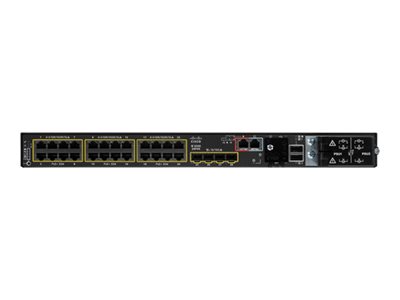

- Product Description Cisco Catalyst IE9320 Rugged Series - switch - 28 ports - managed - rack-mountable
- Device Type Switch - 28 ports - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE) PoE+
- PoE Budget 720 W
- Performance Forwarding rate: 64 Gbps ¦ Switching bandwidth: 128 Gbps
- Capacity Queues: 8 ¦ IGMP multicast groups: 1000 ¦ VLANs supported: 1024 ¦ IPv4 routes: 4000 ¦ IPv6 routes: 2000 ¦ STP instances: 128 ¦ ACL entries: 1408 ¦ Switched virtual interfaces (SVIs): 984 ¦ SXP Sessions: 200
- MAC Address Table Size 16K entries
- Routing Protocol IS-IS, BGP, EIGRP, HSRP, IGMP, MSDP, STP, LISP, VRF
- Remote Management Protocol SNMP, HTTP, HTTPS
- Features NAT support, Non-Stop Forwarding (NSF), fanless, Flexible NetFlow (FNF), Precision Time Protocol (PTP), PROFINET, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), TrustSec support, High-speed Self Recovery (HSR), Security Group Access Control List (SGACL), Media Redundancy Protocol (MRP), Media Access Control Security (MACsec), EtherChannel support, ACL support
- Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 802.3bt
- Power Redundancy Yes
- Dimensions (WxDxH) 17.5 in 1.7 in
- Weight 9.7 lbs
- Manufacturer Warranty 5-year warranty
|
