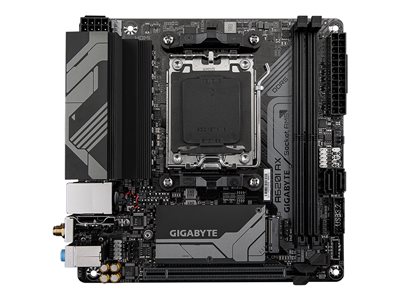

A620I AX AM5 LGA 1718 AMD A620 MINI-ITX MOTHERBOARD DDR5
A620I AX AM5 LGA 1718 AMD A620 MINI-ITX MOTHERBOARD DDR5
- Price:
$169.99
- Availability:
- Mfr #: A620I AX
- UNSPSC #: 43201513
- Item #: 011054117
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 2 x Wi-Fi antenna, I/O back plate, 1 x M.2 screw |
| Cables Included | 2 x Serial ATA cable |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), LAN manager |
| Width | 6.7 in |
| Depth | 6.7 in |
Supported RAM
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
LAN
| Network Controller | Realtek RTL8852CE |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
General
| Product Type | Motherboard - mini ITX |
| Chipset Type | AMD A620 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000 Series) |
Features
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Features | 5+2+1 Phase Power Design, Q-Flash, Q-Flash Plus, GIGABYTE Smart Fan 6, RGB FUSION, PCIe EZ Latch, DIY Friendly Design, Audio Noise Guard, High-end Audio Capacitors |
Audio
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
Expansion / Connectivity
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 3 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x antenna |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
