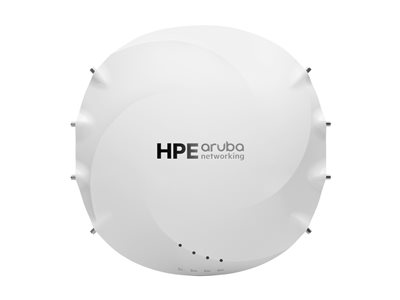

Aruba AP-654 (RW) Campus AP
  • Price:
    $2,022.99
« Back

Aruba AP-654 (RW) Campus AP

Aruba AP-654 (RW) Campus AP

  • Price:
    $2,022.99
  • Availability:
  • Mfr #:  S1G53A
  • UNSPSC #:  81111811
  • Item #:  011056116
  • Add to Shopping List
  • cnet cat code #:  100701
Need Help? Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Communications Technology Bluetooth Low Energy (LE), Zigbee
Miscellaneous
MTBF 59 years
Compliant Standards EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, SAE, SIG, IEC/EN 62368-1, IEEE 802.11mc, WPA
Networking
Connectivity Technology Wireless
Data Transfer Rate 7.8 Gbps
Line Coding Format OFDMA
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), ZigBee
Spread Spectrum Method DSSS
Frequency Band 2.4 GHz, 5 GHz, 6 GHz
Performance Peak data rate: 7.8 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2.4 Gbps ¦ Maximum data rate (6 GHz): 4.8 Gpps
Features 4x4:4 streams, Trusted Platform Module (TPM), Wi-Fi Multimedia (WMM) support, Advanced IoT Coexistence (AIC)
Encryption Algorithm WPA3, WPA2-MPSK
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 - 95% RH
General
Device Type Wireless access point
Ruggedized Design Indoor
Width 10.2 in
Depth 10.2 in
Height 2.2 in
Weight 3.97 lbs
Expansion / Connectivity
Interfaces 2 x 5GBase-T (PoE) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x micro-USB - Type B
Dimensions & Weight (Shipping)
Shipping Width 11.8 in
Shipping Depth 11.8 in
Shipping Height 3.9 in
Shipping Weight 4.85 lbs
Power
Power Over Ethernet (PoE) Supported PoE
Antenna
Antenna Internal
Directivity Omni-directional
Gain Level 7 dBi
