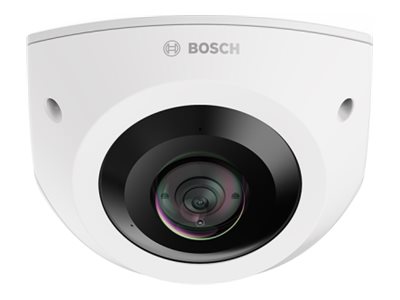

FIXED DOME 6MP CORNER IR
FIXED DOME 6MP CORNER IR
- Price:
$2,172.99
- Availability:
- Mfr #: NCE-7703-FK
- UNSPSC #: 43222631
- Item #: 011119432
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, RTCP, IGMPv2, IGMPv3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA, NTP, SNMP 1, SNMP 3, DNS, DNSv6, DDNS, SMTP, UPnP, QOS, LLDP, SOAP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Included Accessories | Corner mount box, face plate, IR cover, allen key, RJ-45 punch-through aid, 2 x M20 rubber grommets, 3 MAC address labels |
| Compliant Standards | EN 55032 Class A, EN IEC 61006-6-4, EN IEC 61000-3-2, IEC/EN 61000-3-3, FCC CFR 47 Part 15 Class A, ICES-003 issue 7, ANSI C63.4-2014, CISPR 32:2015 + A1:2020, CISPR 32:2016, EN 55035, EN 50130-4, EN 50121-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61006-4-11, EN 50130-5 Class II, EN 60068-2-6, EN 60068-2-27, IEC/EN 63000, RoHS 2011/65/EU Amendment 2015/863, WEEE 2012/19/EU, CP65, IEC 62368-1, EN 62368-1, UL 62368-1:2019, EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 62676-5, EN 50132-5-2, EN 62676-2, IEC/EN 62471, cULus, RCM, VCCI, CMIM, UKCA, IEC 62443, UL CAP, IEEE 802.3af, IEEE 802.3at, NDAA |
| Color | Signal white, RAL 9003 |
Lens Construction
| Type | Fixed focal |
| Focal Length | 2.5 mm |
| Lens Iris | F/2.4 |
| Horizontal Field of View (degree) | 131.1 |
| Vertical Field of View (degree) | 96.5 |
Image Sensor
| Type | 6 MP CMOS 1/1.8" |
| Effective Pixels | 2816 x 2112 |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 5 - 93% (non-condensing) |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in 3 microphone array, two-way audio capability |
| Audio Formats | AAC-LC |
| Form Factor | Dome |
| Camera Mount Type | Corner mount |
| Connectivity Technology | Wired |
| Width | 7.3 in |
| Depth | 8 in |
| Height | 5.4 in |
| Weight | 4.19 lbs |
Camera
| Type | Color - Day&Night - fixed - water resistant / vandal resistant |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/30000 sec |
| Minimum Illumination | 0.072 lux - color - 30 IRE ¦ 0.014 lux - B&W - 30 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 49 ft |
| Frame Rate (max) | 30 frames per second |
| Features | HDR, IR Corrected lens, infrared-cut filter, Intelligent IR Technology, Bosch Intelligent Streaming, 4 video streams, automatic electronic shutter, Audio Detection, Backlight Compensation (BLC), display stamping, geolocation, image flip, intelligent Automatic Exposure (iAE), intelligent Dynamic Noise Reduction (iDNR), Pixel Counter Support, Region of Interest (ROI), tamper-detection, lens wizard, camera view wizard, privacy masking (up to 8 areas), face detection, Intelligent Video Analytics Pro (IVA Pro), gunshot detection, loud noises detection, alarm function, 2D tracking, ship tracking, museum mode, full duplex audio, half duplex audio, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Trusted Platform Module (TPM), scratch-resistant, signed firmware, secure boot, 940nm illuminator |
Expansion / Connectivity
| Ports | LAN - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | 4096-bit RSA, 256-bit AES-CBC, TLS 1.2, TLS 1.1, 256-bit AES, 128-bit AES, TLS 1.3, AES-XTS, MD5, SHA-1, SHA-256 |
Power
| Power Requirements | DC 12 V / AC 24 V / PoE Plus Class 3 |
