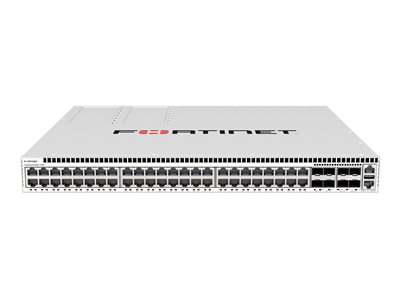

- Product Description Fortinet FortiSwitch 648F-FPOE - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed
- Enclosure Type Front to back airflow rack-mountable 1U
- Subtype 5 Gigabit Ethernet
- Ports 32 x 10/100/1000/2.5G (PoE++) + 16 x 100/1000/2.5G/5G + 8 x 10 Gigabit / 25 Gigabit SFP+ / SFP28
- Power Over Ethernet (PoE) PoE++
- PoE Budget 1800 W
- Performance Switching capacity: 720 Gbps ¦ Packets per second: 1071 Mpps ¦ Latency: < 1 µs
- Capacity Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 56 ¦ Packet buffer size: 8 MB ¦ ACL: 36000 ¦ Spanning Tree Protocol instances: 32 ¦ IPv4 routing entries: 16000 ¦ Host IPv4 routes: 192000 ¦ IP multicast entries: 12000
- MAC Address Table Size 64K entries
- Jumbo Frame Support Yes
- Routing Protocol Policy-based routing (PBR), MSTP, MLD, IGMP, OSPFv2, RIP-2, VRRP, BGP, IS-IS, PIM-SSM, ECMP, Bidirectional Forwarding Detection (BFD), URPF, OSPF
- Remote Management Protocol Syslog, DHCP, IPv4, IPv6, Telnet, SSH, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, CLI, TFTP, RMON
- Features MACsec support, IGMP snooping, 802.1x authentication, DHCP snooping, MAC black/whitelist, NAC, auto-negotiation, MDI, Auto MDIX, STP Root Guard, STP BPDU Guard, Private VLAN, port trunking, VLAN support, Storm Control, TDR, RPVST, Loop Guard, VLAN / port mapping, automatic topology detection, IGMP proxy, IGMP querier, MLD snooping, MLD proxy, MLD querier, DHCP relay, DHCP server, port mirroring, MAB, IP-MAC binding, sFlow, ACL support, ARP inspection, IP source guard, RA guard, WOL, High Availability, QoS, PTP, SNTP support, FTP support, SPAN mode, RSPAN, ERSPAN
- Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1AX, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1ae, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1p, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at
- Power AC 100-240 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.3 in x 13.8 in x 1.7 in
- Weight 17.27 lbs
- Manufacturer Warranty Limited lifetime warranty
|
