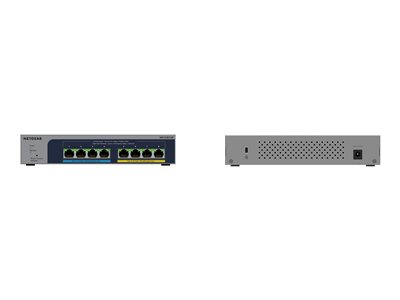

8PT POE++ MULTIGIG SMART SWCH

8PT POE++ MULTIGIG SMART SWCH

  • Price:
    $335.99
  • Availability:
  • Mfr #:  MS108TUP-100NAS
  • UNSPSC #:  43222630
  • Item #:  011134140
  • Add to Shopping List
  • cnet cat code #:  10050803
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories Rubber feet, wall mounting kit
MTBF 373,643.7 hours
Compliant Standards CSA, VCCI, BSMI, EN55024, CCC, KC, FCC Part 15 Class B, ACMA, EN 55032
Localization North America
Dimensions & Weight
Width 8.3 in
Depth 5.5 in
Height 1.6 in
Weight 31.74 oz
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 90% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Humidity Range Storage 95% (non-condensing)
General
Device Type Switch - 8 ports - 2+/L3 Lite - smart
Enclosure Type Rack-mountable, wall-mountable
Subtype 2.5 Gigabit Ethernet
Ports 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5G (PoE+)
Power Over Ethernet (PoE) PoE++
PoE Budget 230 W
Performance Bandwidth: 40 Gbps
Capacity Packet buffer size: 1.5 MB ¦ Multicast groups: 128 ¦ VLANs supported: 64 ¦ Maximum members in a standard LAG: 4
MAC Address Table Size 16K entries
Jumbo Frame Support 12000 bytes
Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, DHCP, IPv6
Features VLAN support, IGMP snooping, DoS attack prevention, port mirroring, WRR queuing, store and forward, QoS, fanless, DHCP client, SPQ, metal housing, DSCP support, Link Aggregation, EEE, WRR, loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast, PoE scheduling, uninterrupted PoE, PoE self-healing, ToS
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt
Status Indicators Power, PoE, link/activity/speed, PoE max
Expansion / Connectivity
Interfaces 4 x 100/1000/2.5G RJ-45 PoE++ - 60 W ¦ 1 x 100/1000/2.5G RJ-45 PoE+ - 30 W
Power
Power Device External power adapter
