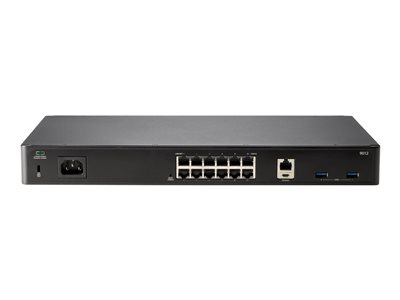

HPE ANW 9012 (RW1) BRANCH GATEWAY

Need Help? Contact Zones Online support at 800.408.9663

Product Description HPE Aruba Networking 9012 (RW1) - Branch - gateway - for medium site - Bluetooth
Device Type Gateway
Form Factor Rack-mountable - 1U
Ports Qty 12
Data Link Protocol Gigabit Ethernet
Performance Firewall throughput: 6 Gbps � GRE encrypted throughput: 6 Gbps � Encrypted throughput AES-CBC-128: 4 Gbps � Encrypted throughput AES-CBC-256: 4 Gbps � Encrypted throughput AES-GCM-128: 6 Gbps � Encrypted throughput AES-GCM-256: 6 Gbps
Capacity Cluster size: 4 � Maximum clients per cluster: 8000 � Maximum number of access points: 32 � Maximum clients (user MAC): 2000 � Maximum devices (APs): 256 � Maximum devices (APs) per cluster: 768 � Maximum data path/ firewall sessions: 128000 � Maximum bridge table: 64000 � Firewall session creation rate (1000 sessions per sec): 130 � L2 VLANs: 4000 � L3 VLANs (IPv4 interfaces): 128 � L3 VLANs (IPv6 interfaces): 128 � Concurrent IPSec tunnels: 2000 � ARP entries: 2000 � Maximum DHCP clients: 4000 � IPv4 routes (static): 2000 � IPv6 neighbors: 7000 � IPv6 routes (static): 577 � Maximum OSPF routes: 8000 � ACL: 2678 � Configurable bandwidth contracts: 1024 � Maximum campus or remote access points: 64 � Concurrent users: 2000 � BSSIDs: 512
OS Required ArubaOS 10.3.1.1
Power Over Ethernet (PoE) Supported PoE+
Power AC 90-264 V (47 - 63 Hz)
Dimensions (WxDxH) 15.6 in x 10.2 in x 1.7 in
Weight 7.54 lbs
Manufacturer Warranty 1-year warranty
