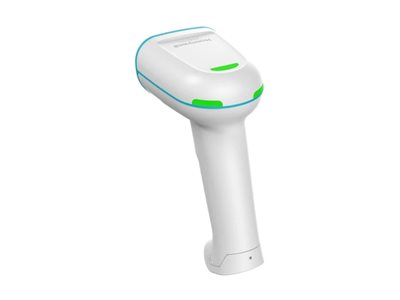

1960H HEALTHCARE 1D/2D SCANNER ONLY - CABLE SOLD SEPARATELY
1960H HEALTHCARE 1D/2D SCANNER ONLY - CABLE SOLD SEPARATELY
- Price:
$358.99
- Availability:
- Mfr #: 1960HHD-5-N
- UNSPSC #: 43211701
- Item #: 011195170
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | IP52 |
Dimensions & Weight
| Width | 2.8 in |
| Depth | 4.3 in |
| Height | 6.3 in |
| Weight | 5.19 oz |
Barcode
| Interface Type | USB |
| Minimum Bar Width | 2 mil |
| Scan Field Width | 0 in - 32.05 in |
| Scan Engine Focus Range | High Definition (HD) |
| Scan Element Type | 2D imager - white LED |
| Sensor Resolution | 1280 x 1080 |
| Light Source Wave Length | 525 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Decode Capability | PDF417, DotCode, Postal Code, OCR, Digimarc Barcode, Code 39, UPC, Code 128, QR code, Data Matrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Antimicrobial protection, ESD (electrostatic discharge) safe |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Drop Specification | 6 ft to concrete |
General
| Type | Barcode scanner - handheld |
Expansion / Connectivity
| Interfaces | 1 x USB - Type A |
Power
| Voltage | DC 4.4 - 5.5 V |
| Power Consumption Operational | 2.5 Watt |
