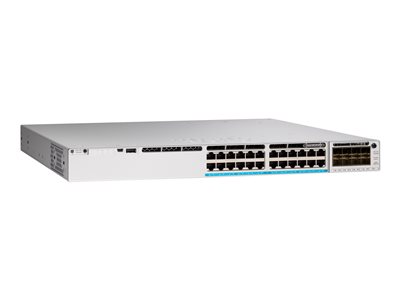

- Product Description Cisco Meraki Catalyst 9300-24UX - switch - 24 ports - managed - rack-mountable
- Device Type Switch - 24 ports - L3 - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype 10 Gigabit Ethernet
- Ports 24 x 100/1000/2.5G/5G/10GBase-T (UPOE)
- Power Over Ethernet (PoE) UPOE
- PoE Budget 560 W
- Performance Switching capacity: 640 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 476.19 Mpps
- Capacity QoS queues: 8 ¦ Member ports per aggregated link: up to 8 ¦ VLANs with trunking: 4094
- MAC Address Table Size 32000 entries
- Routing Protocol IGMP, VRRP, OSPFv2, static IP routing, MSTP, RSTP, STP
- Remote Management Protocol SNMP, DHCP, IPv4, IPv6, Syslog
- Features VLAN support, port mirroring, Broadcast Storm Control, firmware upgradable, PVST, DHCP snooping, ACL support, QoS, DHCP server, DAI, STP Root Guard, UDLD, DHCP relay, Cisco StackPower technology, hot swappable 3 fans, network diagnostics, RBAC, push notification, STP BPDU Guard, STP loop guard, ZTP, DSCP to CoS Mutation, PIM, MAB, VLAN trunking, CDP, RPVST, sticky MAC, adaptive policy, usage statistics
- Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3bt
- Power AC 100-240 V (50 - 60 Hz)
- Power Redundancy Optional
- Dimensions (WxDxH) 17.5 in x 20.2 in x 1.7 in
- Weight 18.19 lbs
- Manufacturer Warranty Limited lifetime warranty
|
