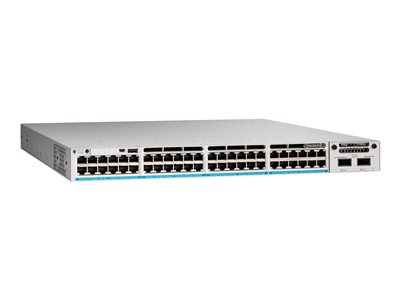

- Product Description Cisco Meraki Catalyst 9300-48UXM - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype 2.5 Gigabit Ethernet
- Ports 36 x 100/1000/2.5G Base-T + 12 x 100/1000/2.5G/5G/10G (UPOE)
- Power Over Ethernet (PoE) UPOE
- PoE Budget 490 W
- Performance Switching capacity: 580 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 431.54 Mpps
- Capacity QoS queues: 8 ¦ Member ports per aggregated link: up to 8 ¦ VLANs with trunking: 4094
- MAC Address Table Size 32000 entries
- Routing Protocol MSTP, RSTP, STP, IGMP, static IP routing, OSPFv2, VRRP
- Remote Management Protocol SNMP, Syslog, DHCP, IPv4, IPv6
- Features Cisco StackPower technology, adaptive policy, ZTP, usage statistics, firmware upgradable, network diagnostics, push notification, QoS, DSCP to CoS Mutation, VLAN support, VLAN trunking, PVST, RPVST, STP BPDU Guard, STP loop guard, STP Root Guard, UDLD, Broadcast Storm Control, CDP, port mirroring, PIM, DHCP server, DHCP relay, RBAC, MAB, sticky MAC, DHCP snooping, DAI, ACL support, hot swappable 3 fans
- Compliant Standards IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3bt
- Power AC 100-240 V (50 - 60 Hz)
- Power Redundancy Optional
- Dimensions (WxDxH) 17.5 in x 22.2 in x 1.7 in
- Weight 20.59 lbs
- Manufacturer Warranty Limited lifetime warranty
|
