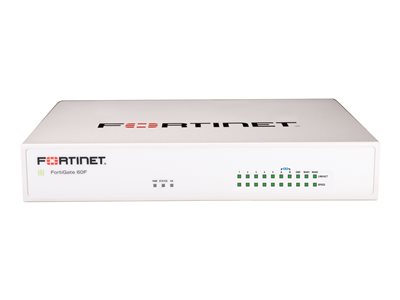

Fortinet FortiGate 60F - security appliance - with 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection
Fortinet FortiGate 60F - security appliance - with 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection
- Price:
$2,362.99
- Availability:
- Mfr #: FG-60F-BDL-809-60
- UNSPSC #: 43222501
- Item #: 011306516
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | VCCI, UL, cUL, CB, BSMI, FCC, ICES, RCM |
Networking
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | VPN throughput (512-bit IPSec): 6.5 Gbps ¦ NGFW throughput: 1 Gbps ¦ SSL inspection throughput: 630 Mbps ¦ IPS throughput: 1.4 Gbps ¦ Firewall throughput: 9000000 packets per second ¦ Threat protection throughput: 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Firewall throughput (512-byte UDP): 10 Gbps ¦ Firewall throughput (64-byte UDP): 6 Gbps ¦ Firewall throughput: 9 Mpps ¦ Application control (AVC) throughput: 1.8 Gbps ¦ VPN throughput (SSL): 900 Mbps ¦ CAPWAP Throughput (HTTP 64K): 8 Gbps ¦ Maximum data rate (5 GHz): 1300 Mbps ¦ Maximum data rate (2.4 GHz): 450 Mpps |
| Capacity | Latency: 3.3 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 24 ¦ Maximum number of FortiTokens: 500 ¦ Client to gateway IPSec VPN tunnels: 500 ¦ Number of registered FortiClients: 200 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection concurrent sessions: 55000 ¦ SSL inspection CPS: 400 ¦ Number of FortiAP devices: 64 ¦ Number of FortiAP devices (tunnel mode): 32 |
| Features | Firewall protection, web threat protection, IPSec Virtual Private Network (VPN), fanless, antivirus analysis, Intrusion Prevention System (IPS) |
| Encryption Algorithm | SSL, TLS 1.3 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Security appliance |
| Bundled Services | 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection |
| Width | 8.5 in |
| Depth | 6.3 in |
| Height | 1.5 in |
| Weight | 2.23 lbs |
Processor / Memory / Storage
| Processors Installed | 1 x Fortinet FortiASIC SOC4 |
Expansion / Connectivity
| Interfaces | 5 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN / DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A |
Power
| Power Device | External power adapter |
| Installed Qty | 1 |
| Voltage Required | (50/60 Hz) |
| Power Consumption Operational | 10.17 Watt |
Software / System Requirements
| OS Provided | FortiOS |
