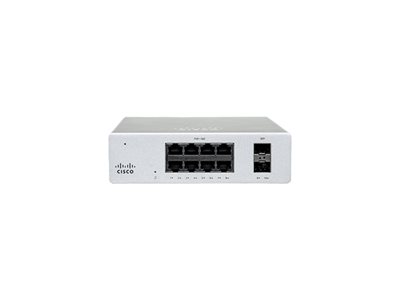

MERAKI MS130R-8P CLOUD MGD RUGGEDIZED 8GE 240W POE SWITCH
MERAKI MS130R-8P CLOUD MGD RUGGEDIZED 8GE 240W POE SWITCH
- Price:
$2,661.99
- Availability:
- Mfr #: MS130R-8P-HW
- UNSPSC #: 43222612
- Item #: 011337255
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | DIN-rail bracket, 19" mounting brackets, wall mount brackets |
| Compliant Standards | IP30, UL 60950-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, NOM-019-SCFI-1998, CNS 15598-1:2020, FCC CFR 47 Part 15 Class A, ICES-003 Class A, EN 55032, EN 55032 Class A, AS/NZS CISPR 32 Class A, VCCI Class A, CNS 15936 Class A, EN 300 386, IEC/EN 61000-4-9, IEC/EN 61000-4-29, RoHS, China RoHS, RCM, VCCI, JATE, BSMI, KC, ANATEL, NAL, IFETEL, WEEE, NEMA TS-2, IEC 60068-2-3, IEC 60068-2-30 |
Dimensions & Weight
| Width | 6.2 in |
| Depth | 6.7 in |
| Height | 1.7 in |
| Weight | 33.86 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - 1 year |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
General
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Rack-mountable, wall-mountable, DIN rail mountable, desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000Base-T + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 20 Gbps |
| Remote Management Protocol | SNMP, Syslog, IPv4, IPv6, DHCP |
| Features | Remote firmware upgrade, ACL support, VLAN Tagging, DHCP relay, DHCP snooping, 802.1x authentication, fanless, QoS, non-blocking architecture |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1x, IEEE 802.3bt |
| Status Indicators | Power, link/activity, status |
Expansion / Connectivity
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP |
Power
| Power Device | External power adapter |
| Voltage Required | DC 50 - 54 V |
| Electric Current Required | 5.6 A |
| Power Consumption Stand by | 12 Watt |
