NCS 5700 32X25G + 16X50G + 2X400G BASE MACSEC LC BUNDLE

Need Help? Contact Zones Online support at 800.408.9663

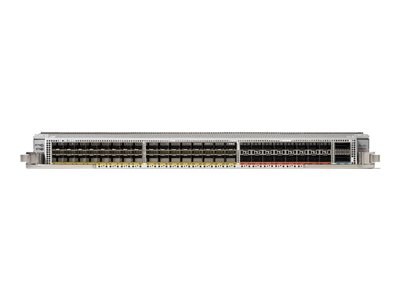

Product Description Cisco Network Convergence System 5700 Series Line Card - expansion module - 25 Gigabit Ethernet x 32 + 50 Gigabit Ethernet x 16 + 400Gb Ethernet x 2
Device Type Expansion module
Form Factor Plug-in module
Bundled with (NC57-48Q2D-S-RTU) NCS 5700 32X1/10/25G + 16x1/10/25/50G + 2x400G Linecard Scale Right To Use License
Ports 25 Gigabit Ethernet x 32 + 50 Gigabit Ethernet x 16 + 400Gb Ethernet x 2
Dimensions (WxDxH) 16.9 in x 17.1 in x 1.7 in
Weight 14.48 lbs
Data Link Protocol 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, 100GbE, 400GbE
Performance Maximum throughput: 2.4 Tbps
Capacity IPv4 routes: 5000000 � IPv6 routes: 2000000
Network / Transport Protocol IPv4, IPv6
Compliant Standards IEEE 1588v1
System Requirements Cisco IOS XR 7.10.1 or later
Manufacturer Warranty 1-year warranty
Designed For P/N: NCS-5504, NCS-5504-MBH, NCS-5508, NCS-5508-MBH, NCS-5516, NCS-5516-MBH
