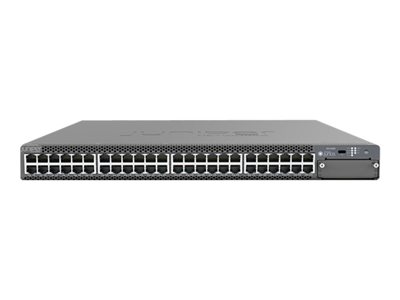

- Product Description Juniper Networks EX Series EX4400-48T - switch - 48 ports - managed
- Device Type Switch - 48 ports - L3 - managed
- Enclosure Type Back to front airflow 1U
- Subtype Gigabit Ethernet
- Ports 48 x 1000Base-T + 2 x 100 Gigabit (stacking)
- Performance Unidirectional switching capacity: 348 Gbps ¦ Bidirectional switching capacity: 696 Gbps
- Capacity IPv6 neighbor discovery: 4096 ¦ VSTP instances: 510 ¦ MST instances: 64 ¦ Maximum member ports per LAG: 16 ¦ ARP entries: 24000 ¦ IPv4 prefixes (Unicast): 130048 ¦ IPv4 hosts (Unicast): 81000 ¦ IPv4 routes (Multicast): 40000 ¦ IPv6 neighbor discovery: 12000 ¦ IPv6 routes (Unicast): 87000 ¦ Host IPv6 routes (Unicast): 40000 ¦ IPv6 routes (Multicast): 20000
- MAC Address Table Size 112000 entries
- Jumbo Frame Support 9216 bytes
- Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, RIPng, MLD, Bidirectional Forwarding Detection (BFD), BGP for IPv6, MSTP, RSTP, STP
- Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
- Features Flow control, BOOTP support, RARP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, store and forward, High Availability, DPI, WRED, sFlow, DHCP snooping, QoS, DHCP server, VRF-Lite, DHCP proxy, DAI, temperature sensor, RTG, NSB, NSR, GRES, LACP support, LLDP support, DHCP relay, LACP, DHCP client, MIB, MVRP, NDP, VSTP, CoS, IPFIX, Captive Portal, DSCP support, ERPS, MACsec support, IP source guard, ECN, SCP, VXLAN, Link Aggregation, EVPN, policy based routing, AAA, WDRR, Voice VLAN, LLDP-MED, RA guard, DoS protection, RVI, VLAN Tagging, port-based VLAN, PVLAN support, DDoS Protection, JTI, RPVST+, DNS support, MRP
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, ITU-T G.8032
- Power AC 120/230 V
- Power Redundancy Yes
- Dimensions (WxDxH) 17.4 in x 15.7 in x 1.7 in
- Weight 13.01 lbs
|
