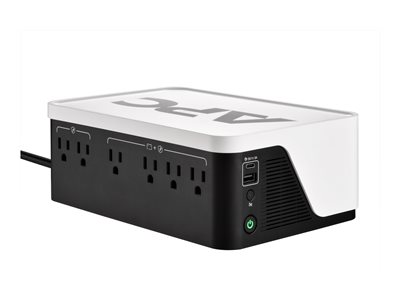

APC BACK-UPS 120V 500VA 6 OUTLETS

Need Help? Contact Zones Online support at 800.408.9663

Miscellaneous

Cables Included	Power cable 5 ft
Equipment Protection Value	75000 US Dollars
Features	Wall mountable, stackable, floor mountable, audible alarm, LED indicators, low battery alarm, overload alarm, Quick Mute
Compliant Standards	FCC Class B certified, RoHS, cTUVus, REACH, China RoHS

Sustainability Information

ENERGY STAR

Yes

Dimensions & Weight

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years

Battery

Quantity	1
Technology	Lead acid
Run Time (Up To)	1.8 hrs at 30 Watts � 39 min at 50 Watts � 17.05 min at 100 Watts � 9.57 min at 150 Watts � 6.27 min at 200 Watts � 4.24 min at 250 Watts � 3.02 min at 300 Watts
Recharge Time	8 hours
Transfer Time	10 ms

Environmental Parameters

General

Device Type	UPS - external
Color	Black and white

Power Device

UPS Technology	Off-line
Input Voltage	AC 120 V
Frequency Provided	50/60 Hz � 3Hz
Frequency Required	50/60 Hz � 3Hz
Input Connectors	1 x power NEMA 5-15P
Power Output Connectors Details	4 x power NEMA 5-15R (UPS) � 2 x power NEMA 5-15R (UPS and surge) � 1 x 24 pin USB-C - 5 V 3 A � 1 x 4 pin USB Type A - 5 V 3 A
Output Voltage	AC 120 V 50/60 Hz
Power Capacity	300 Watt / 500 VA
Output Waveform	Stepped approximation to a sinewave
Surge Suppression	Yes
Surge Energy Rating	490 Joules
Efficiency	99% at 75% Load, 99.1% at 100% Load, 97.6% at 25% Load, 98.7% at 50% Load
Power Factor (PF)	0.6
