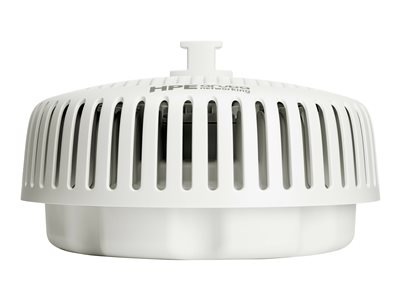

HPE ANW AP-677 (US) OUTDOOR AP
HPE ANW AP-677 (US) OUTDOOR AP
- Price:
$2,579.99
- Availability:
- Mfr #: S0P55A
- UNSPSC #: 43222631
- Item #: 011541502
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
Miscellaneous
| MTBF | 500,562 hours |
| Compliant Standards | FCC, ISED, IEC 62368-1, EN 62368-1, ASTM B117-07A, ATEX Zone 2, Class 1 Div 2 (C1D2), RED 2014/53/EU, EN 60601-1-1, EN60601-1-2, IP66, IP67, GR-487 |
| Pricing Type | BTO |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.9 Gbps |
| Line Coding Format | CCK, OFDM, BPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, DSSS, QPSK |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee |
| Spread Spectrum Method | OFDMA, DSSS, OFDM |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 287 Mbps ¦ Maximum data rate (6 GHz): 2.4 Gbps |
| Capacity | Spatial streams: 2 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| Status Indicators | System, status, radio |
| Features | Surge protection, Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, packet aggregation A-MPDU, packet aggregation A-MSDU, 160MHz bandwidth support, MU-MIMO technology, Advanced IoT Coexistence (AIC), Zero-touch provisioning (ZTP), Very High Throughput (VHT) support, Target Wait Time (TWT), 2x2 MIMO technology |
| Encryption Algorithm | WPA3, WPA2-MPSK, WPA3-Enhanced Open |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 100% (non-condensing) |
General
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 11.4 in |
| Depth | 11.3 in |
| Height | 6.7 in |
| Weight | 7.94 lbs |
Expansion / Connectivity
| Interfaces | 1 x 2.5 GBase-T ¦ 1 x 1000Base-SR - SFP+ ¦ 1 x console - USB-C |
Power
| Power Over Ethernet (PoE) Supported | PoE Class 6 |
Antenna
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Directional |
Software / System Requirements
| OS Required | ArubaOS 8.12.0.0, InstantOS 8.12.0.0 |
