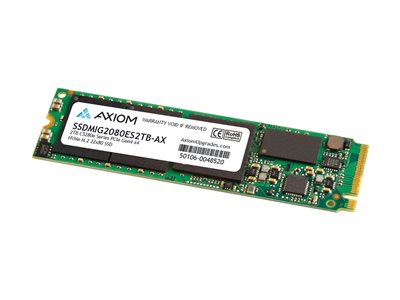

AXIOM 2TB C5280E SERIES NVME M.2 SSD
AXIOM 2TB C5280E SERIES NVME M.2 SSD
- Price:
$358.99
- Availability:
- Mfr #: SSDMIG2080ES2TB-AX
- UNSPSC #: 43201803
- Item #: 011549734
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | RoHS |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% RH |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
General
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Bytes per Sector | 512 |
| Features | 3D NAND Technology, dynamic SLC caching, NVM Express (NVMe) 1.4, Garbage Collection technology, Global Wear Leveling, HMB (Host Memory Buffer) supported, IG5220 controller, NVM Express (NVMe) deallocate support, StaticDataRefresh Technology, Advanced Encrypting Standard (AES), NVMe Secure Erase support, Dynamic and Static Wear Leveling, Low-Density Parity Check, LDPC error correction, Error Correction Code (ECC), S.M.A.R.T. |
| Width | 0.9 in |
| Depth | 3.1 in |
| Weight | 1.41 oz |
Expansion & Connectivity
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
Performance
| Drive Writes Per Day (DWPD) | 0.446 |
| SSD Endurance | 1000 TB |
| Internal Data Rate | 4985 MBps (read) / 4775 MBps (write) |
| Maximum 4KB Random Write | 288000 IOPS |
| Maximum 4KB Random Read | 336000 IOPS |
Reliability
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
Power
| Voltage Required | DC 3.3 V |
| Power Consumption | 4.75 Watt (active) ¦ 0.3 Watt (idle) |
