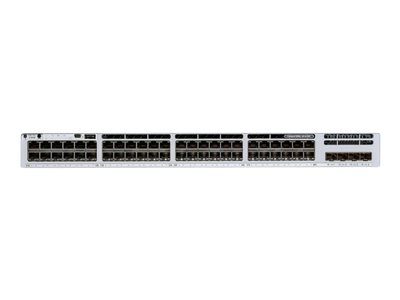

- Product Description Cisco Meraki Catalyst 9300L-48PF-4X - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 48 x 10/100/1000 (PoE+) + 4 x 1/10 Gigabit (uplink)
- Power Over Ethernet (PoE) PoE+
- PoE Budget 890 W
- Performance Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps ¦ Stacking bandwidth: 496 Gbps
- Capacity Priority queues: 8 ¦ Maximum number of VLANs: 4094 ¦ Active VLANs: 1000 ¦ Link aggregation ports: 8
- MAC Address Table Size 32000 entries
- Routing Protocol Static IP routing, STP, OSPFv2, VRRP
- Remote Management Protocol SNMP, Syslog, DHCP
- Features ACL support, ZTP, firmware upgradable, push notification, QoS, DSCP to CoS mapping, VLAN support, VLAN trunking, BPDU Guard, Root Guard, Loop Guard, UDLD, Broadcast Storm Control, CDP, port mirroring, IGMP snooping, Multicast filtering function, Multicast routing, DHCP server, DHCP relay, RBAC, 802.1x authentication, MAB, Port Security, DHCP snooping, DAI, 3 fans
- Compliant Standards IEEE 802.1p, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Power AC
- Power Redundancy Yes
- Dimensions (WxDxH) 17.5 in x 19.2 in x 1.7 in
- Weight 15.5 lbs
- Manufacturer Warranty Limited lifetime warranty
|
