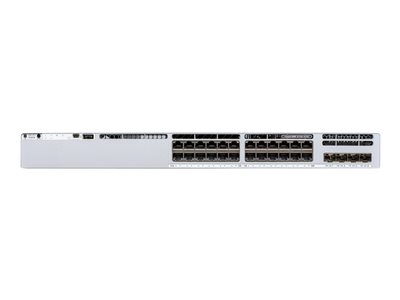

C9300L 24-PORT POE, 4X10G UPLINK, 715WAC PS, W/MERAKI
C9300L 24-PORT POE, 4X10G UPLINK, 715WAC PS, W/MERAKI
- Price:
$3,036.99
- Availability:
- Mfr #: C9300L-24P-4X-M
- UNSPSC #: 43222612
- Item #: 011582490
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 340,710 hours |
| Compliant Standards | RoHS, CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, FCC CFR 47 Part 15 Class A, ICES-003 Class A, CISPR 22 Class A, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, KN32, TCVN 7189 Class A, EN 55032, CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR 24, EN55024, KN35, TCVN 7317 |
Dimensions & Weight
| Width | 17.5 in |
| Depth | 17.7 in |
| Height | 1.7 in |
| Weight | 16.2 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% |
General
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 1/10 Gigabit (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 505 W |
| Performance | Switching capacity: 128 Gbps ¦ Forwarding rate: 95.23 Mpps ¦ Forwarding rate with stacking: 333.33 Mpps ¦ Stacking bandwidth: 448 Gbps |
| Capacity | Priority queues: 8 ¦ Maximum number of VLANs: 4094 ¦ Active VLANs: 1000 ¦ Link aggregation ports: 8 |
| MAC Address Table Size | 32000 entries |
| Max Units In A Stack | 8 |
| Routing Protocol | Static IP routing, STP, OSPFv2, VRRP |
| Remote Management Protocol | SNMP, Syslog, DHCP |
| Authentication Method | RADIUS |
| Features | ACL support, ZTP, firmware upgradable, push notification, QoS, DSCP to CoS mapping, VLAN support, VLAN trunking, BPDU Guard, Root Guard, Loop Guard, UDLD, Broadcast Storm Control, CDP, port mirroring, IGMP snooping, Multicast filtering function, Multicast routing, DHCP server, DHCP relay, RBAC, 802.1x authentication, MAB, Port Security, DHCP snooping, DAI, 3 fans |
| Compliant Standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Status |
Expansion / Connectivity
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1/10GBase-X SFP+ uplink ¦ 2 x network stack device ¦ 1 x management |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Provided | 715 Watt |
| Voltage Required | AC |
| Power Consumption Stand by | 139.6 Watt |
