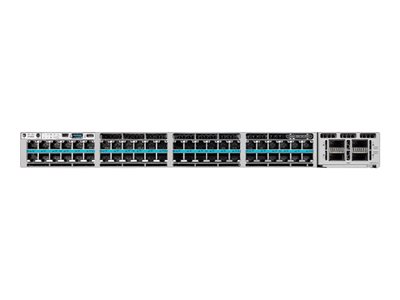

- Product Description Cisco Meraki Catalyst 9300X-48HXN - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype 5 Gigabit Ethernet
- Ports 8 x 10/100/1000/2.5G/5G/10GBase-T (UPoE+) + 40 x 5GBase-T (UPoE+)
- Power Over Ethernet (PoE) UPOE+
- PoE Budget 690 W
- Performance Switching capacity: 2000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Stacking bandwidth: 1 Tbps
- Capacity Priority queues: 8 ¦ Maximum number of VLANs: 4094 ¦ Active VLANs: 1000 ¦ Link aggregation ports: 8
- MAC Address Table Size 32000 entries
- Routing Protocol VRRP, OSPFv2, static IP routing, STP
- Remote Management Protocol SNMP, DHCP, IPv4, IPv6, Syslog
- Features VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, firmware upgradable, DHCP snooping, QoS, DHCP server, DAI, UDLD, DHCP relay, Port Security, Multicast filtering function, Cisco StackPower technology, 802.1x authentication, 3 fans, RBAC, push notification, Root Guard, Loop Guard, ZTP, MAB, BPDU Guard, VLAN trunking, CDP, Multicast routing, DSCP to CoS mapping
- Compliant Standards IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
- Power AC
- Power Redundancy Yes
- Dimensions (WxDxH) 17.5 in x 20.6 in x 1.7 in
- Weight 14.2 lbs
- Manufacturer Warranty Limited lifetime warranty
|
