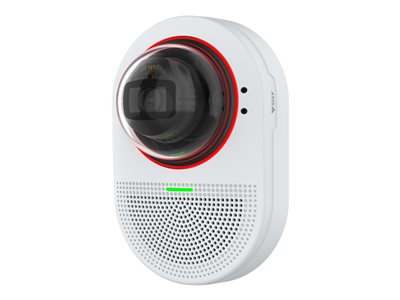

AXIS Q9307-LV
AXIS Q9307-LV
- Price:
$1,557.99
- Availability:
- Mfr #: 02487-001
- UNSPSC #: 43222631
- Item #: 011600847
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Torx TR20 bit, terminal block connector, connector guard, owner authentication key, cable gaskets |
| TAA Compliant | Yes |
| Compliant Standards | CSA, UL/cUL, KC, VCCI Class A, RCM, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), KCC KN35, KCC KN32 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IS 13252, IEC/EN 62471, IEC/EN 60529 IP44, IEC/EN 62262 IK08, NIST SP500-267, EAL 6+, IEEE 802.3af, IEEE 802.3at, PVC-free, EN 63000:2018, REACH 1907/2006/CE, RoHS 2011/65/EU |
| Color | White, NCS S 1002-B |
Lens Construction
| Type | Vari-focal |
| Optical Zoom | 2.7 x |
| Focal Length | 3 mm - 8 mm |
| Lens Iris | F/1.3 auto iris (P-Iris) |
| Min Focus Distance | 3.3 ft |
| Horizontal Field of View (degree) | 40 - 104 |
| Vertical Field of View (degree) | 29 - 74 |
Tilting
| Range (degree) | -10 to +80 |
Panning
| Range (degree) | -190 to +190 |
Software / System Requirements
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection |
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, RTCP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Image Sensor
| Type | 5 MP PS RGB CMOS 1/2.7" |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in four microphones, built-in speaker, two-way audio capability |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Form Factor | Dome |
| Camera Mount Type | Ceiling mount, wall mount |
| Connectivity Technology | Wired |
| Width | 5.9 in |
| Depth | 4.2 in |
| Height | 9 in |
| Weight | 2.76 lbs |
| Localization | United States, United Kingdom, Korea, Japan, India, Europe, China, Brazil, Australia, Argentina |
Camera
| Type | Color - Day&Night - fixed - indoor |
| Digital Video Format | H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/33500 sec |
| Minimum Illumination | 0.13 lux - color - F1.3 - 50 IRE ¦ 0 lux - B&W - F1.3 - 50 IRE |
| Digital Video Capture Resolution | 2592 x 1458, 2592 x 1944, 1280 x 800, 160 x 120, 160 x 90, 160 x 100 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | IR Corrected lens, remote focus, remote zoom, hybrid IR filter, infrared-cut filter, -190° / +190° rotation, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), low latency mode, video streaming indicator, 180° image rotation, 270° image rotation, 90° image rotation, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, tone mapping, exposure zone, exposure mode, defogging, barrel distortion correction, electronic image stabilization, compression, Corridor mode, image mirror, dynamic text, image overlay, Privacy Mask Function, Forensic WDR, Lightfinder 2.0 technology, digital PTZ function, OptimizedIR, Acoustic Echo Cancellation (AEC), AXIS Object Analytics, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, bit rate control, signed firmware, brute force delay protection, digest authentication, password protection, secure keystore, secure boot, aluminum housing, plastic housing, polycarbonate bubble, LED indicator, NAS-Ready |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 ¦ Digital input/output - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | 256-bit AES-XTS, EAP-TLS, PEAP, MSCHAPv2, TLS 1.2, TLS 1.3 |
Power
| Power Requirements | PoE Class 4 |
| Power Device | 10 Watt |
