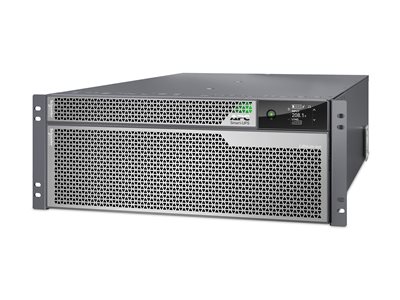

APC SMART-UPS ULTRA ON-LINE LITHIUM ION, 8KVA/8KW, 4U RACK/TOWER, 208/
APC SMART-UPS ULTRA ON-LINE LITHIUM ION, 8KVA/8KW, 4U RACK/TOWER, 208/
- Price:
$14,995.99
- Availability:
- Mfr #: SRTL8KRM4UT
- UNSPSC #: 39121011
- Item #: 011618898
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Network management card, temperature probe, stabilization feet, strain relief |
| Cables Included | USB cable - external |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, horizontal orientation, Auto-Sensing Technology, double conversion, internal bypass, LCD display, visible alarm, audible alarm, emergency power off |
| Compliant Standards | cULus, Energy Star 2.0, UL 1778, IP20, REACH, EU RoHS, China RoHS, Mercury-free |
Networking
| Remote Management Interface | USB, Ethernet |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 17 in |
| Depth | 32.8 in |
| Height | 6.9 in |
| Weight | 121.25 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 5 years |
Battery
| Type | Expandable |
| Quantity | 1 |
| Technology | Lithium ion lithium ion |
| Voltage Provided | 180 V |
| Recharge Time | 1.5 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 4U |
| Color | Silver gray |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 208/240 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 40 - 70 Hz ± 0.1Hz |
| Input Connectors | 1 x hardwire 3-wire (2PH + G) |
| Power Output Connectors Details | 2 x power NEMA L6-30R ¦ 2 x power NEMA L6-20R ¦ 1 x hardwire 3-wire (2PH + G) |
| Output Voltage | AC 208 V 50/60 Hz |
| Max Electric Current | 48 A |
| Power Capacity | 8000 Watt / 8000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1410 Joules |
| Total Harmonic Distortion (THD) | 5 % |
Expansion / Connectivity
| Interfaces | 1 x sensor ¦ 1 x management (Ethernet) ¦ 1 x EPO (emergency power off) ¦ 1 x management ¦ 1 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 5 pin Micro-USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 25.6 in |
| Shipping Depth | 39.4 in |
| Shipping Height | 24.8 in |
| Shipping Weight | 195.11 lbs |
