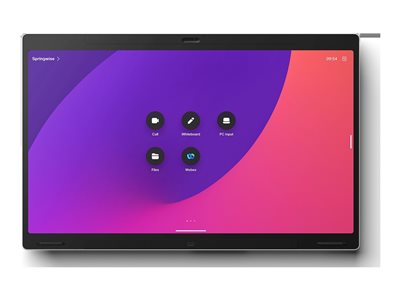

CISCO BOARD PRO 75 G2
CISCO BOARD PRO 75 G2
- Price:
$21,941.99
- Availability:
- Mfr #: CS-BRDP75-K9
- UNSPSC #: 45111902
- Item #: 011634989
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Audio Input
| Type | 14 microphones - integrated |
| Microphone Operation Mode | Beamforming |
Miscellaneous
| Mounting Kit | Included |
| Included Accessories | Wall mount kit, lifting handles |
| Software Certification | Certified for Microsoft Teams Rooms |
| Compliant Standards | HDCP, IPv6, MIC, Directive 2014/30/EU, Directive 2014/53/EU, Directive 2014/35/EU, Directive 2011/65/EU, RoHS, WEEE, NRTL, FCC, FCC 47 CFR Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E |
Networking
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth, Bluetooth LE |
| Network / Transport Protocol | DHCP, IPv4, IPv6, NTP, HTTP, HTTPs, DNS |
| Features | BYOD mode, Cisco Expressway technology, firewall protection, 2x2 MIMO technology, full duplex mode, WebRTC, DiffServ support, Certificate Authority Proxy Function (CAPF) |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3af, IEEE 802.11d, X.509, IEEE 802.1Q, IEEE 802.1p |
Video Input
| Type | Dual digital video camera (color) - integrated |
| Interface Type | HDMI, USB |
| Digital Video Capture Resolution | 3840 x 2160 |
| Video Modes | 4K |
| Digital Zoom | 5 |
| Features | AI-powered, 48 megapixels resolution, 70° horizontal field of view (main camera), 50° vertical field of view (main camera), AI noise reduction, intelligent multi-participant framing, 30 fps, F 1.8 lens aperture (main camera), 1/3 CMOS image sensor type, auto focus lens (VCM) (main-camera), 112° horizontal field of view (ultra-wide camera), 94° vertical field of view (ultra-wide camera), fixed focus (ultra-wide camera), 802.1x authentication, Acoustic Echo Cancellation (AEC), auto AGC, Ultrasound technology |
Audio Output
| Type | Speaker(s) |
| Frequency Response | 75 - 20000 Hz |
Video Output
| Supported Display Graphics | UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - 90 days |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
Input Device
| Type | 2 digital pens |
| Connectivity Technology | Wireless |
General
| Device Type | Video conferencing device |
| VoIP Protocols | H.323, SIP, SRTP |
| Voice Codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Video Codecs | H.264 AVC, H.265, H.263, H.239 |
| Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p |
| IP Address Assignment | DHCP |
| Security | TLS, H.323, 128-bit AES, 256-bit AES, SRTP, WPA3, WPA3-Enterprise, AES-CCMP |
| Network Protocols | DHCP, IPv4, NTP, HTTP, HTTPS, TLS, Cisco Discovery Protocol (CDP), IEEE 802.1x, SIP, SSH, DNS, SRTP |
| Width | 67.7 in |
| Depth | 3.4 in |
| Height | 43.4 in |
| Weight | 158.73 lbs |
| Dimensions & Weight Details | Mount - Weight 12.8 lbs |
| Built-in Devices | 14 microphone array, dual camera, capacitive touch screen, stereo speakers, subwoofer |
Modem
| Digital Signaling Protocol | H.460.18, H.460.19, H.323, SIP, H.239, BFCP |
| Data Compression Protocol | H.264, H.265, H.263, G.711, G.722, G.722.1, G.729, H.239 |
Expansion / Connectivity
| Interfaces | 1 x display / video - HDMI input - 19 pin HDMI Type A ¦ 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x display / video - input - 24 pin USB-C ¦ 2 x network - Ethernet 1000Base-T - RJ-45 ¦ 1 x network - Ethernet 1000Base-T (PoE) - RJ-45 ¦ 2 x audio - line-in - mini-phone 3.5 mm ¦ 1 x audio - line-out - mini-phone 3.5 mm ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB - Micro-USB 2.0 |
Power
| Voltage Required | AC 100-240 V (50/60 Hz) |
Display
| Technology | IPS |
| Diagonal Size | 75" |
| Native Resolution | 3840 x 2160 |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 350 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Response Time | 8 ms |
| Monitor Features | LED Technology, ±89° viewing angle, multi-touch screen, 10-bit Color Depth |
