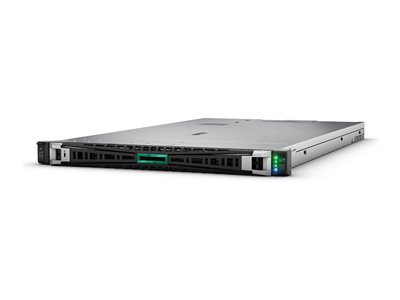

HPE DL360 G11 4510 64G 8SFF MR408I-O SVR
HPE DL360 G11 4510 64G 8SFF MR408I-O SVR
- Price:
$5,125.99
- Availability:
- Mfr #: P72987-005
- UNSPSC #: 43211501
- Item #: 011660001
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
Miscellaneous
| Included Accessories | 5 x standard fans, HPE Easy Install Rail 3 Kit |
| Compliant Standards | ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4, Active Directory v1.0, Redfish API, SMBIOS 3.4 |
| Manufacturer Selling Program | HPE Smart Choice |
Networking
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | OCP 3.0 |
Dimensions & Weight
| Width | 17.1 in |
| Depth | 29.6 in |
| Height | 1.7 in |
| Weight | 32.1 lbs |
Hard Drive
| Type | HDD |
| Capacity | 2 x 1.2 TB |
| Interface Type | SAS |
Graphics Controller
| Video Memory | 16 MB |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Sustainability Information
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
Storage Controller
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States, Canada |
Processor / Chipset
| CPU | Intel Xeon Silver 4510 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Chipset Type | Intel C741 |
Expansion / Connectivity
| Bays | 1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 0 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces | 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x USB 2.0 |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
Operating System / Software
| OS Provided | No operating system |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware vSphere 7.0 (ESXi) Update 3, VMware vSphere 8.0 (ESXi) Update 1, VMware vSphere 8.0 (ESXi) Update 2, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP5 QU1, SUSE Linux Enterprise Micro 5.5, Canonical Ubuntu 20.04.5 LTS, Canonical Ubuntu 22.04 LTS, Oracle Linux 9 |
| Software | HPE Server UEFI |
RAM
| Installed Size | 64 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4400 MHz |
| Rated Memory Speed | 5600 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 30 (empty) |
| Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 2 x 32 GB |
Optical Storage
| Type | No optical drive |
