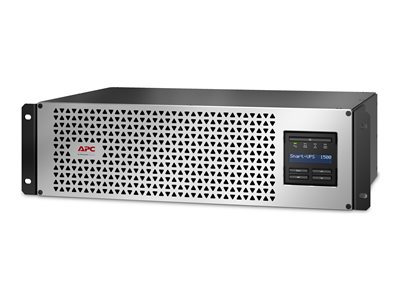

APC Smart-UPS, Lithium-Ion, Short Depth 1500VA, 120V with SmartConnect

Need Help? Contact Zones Online support at 800.408.9663

Miscellaneous

Cables Included	Serial cable - external � USB cable - external � Power cable - integrated - 8 ft
Equipment Protection Value	150000 US Dollars
Features	User-replaceable removable battery, audible alarm, LCD display
Compliant Standards	CSA, NOM, UL 1778, FCC Part 15 A, CSA C22.2 No. 107.3, UL 1973
Pricing Type	APC Take-Back

Networking

Remote Management Interface

RS-232, USB, Ethernet 10/100/1000

Sustainability Information

Packaging Recycled Content

Made of recycled cardboard

Dimensions & Weight

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Battery

Technology	Lithium ion
Run Time (Up To)	5 min at full load � 12.6 min at half load
Recharge Time	2 hours

Environmental Parameters

General

Device Type	UPS - rack-mountable / external
Height (Rack Units)	3U
Color	Black, silver
Bundled with	APC Network Management Card 3 with Environmental Monitoring AP9641

Power Device

UPS Technology	Line interactive
Input Voltage	AC 120 V
Input Voltage Range	AC 82 - 144 V
Input Voltage Range (Adjustable)	AC 75 - 154 V
Frequency Provided	50/60 Hz � 3Hz
Input Wiring	1-phase
Frequency Required	50/60 Hz � 3Hz
Input Connectors	1 x power NEMA 5-15P
Power Output Connectors Details	6 x power NEMA 5-15R
Output Voltage	AC 120 V � 5% - 50/60 Hz
Power Capacity	1350 watt / 1500 VA
Output Waveform	Sinewave
Surge Suppression	Yes
Surge Energy Rating	680 joules

Expansion / Connectivity

Interfaces	1 x management (RS-232) - RJ-45 � 1 x management (USB) � 1 x management (Gigabit Ethernet) - RJ-45 � 2 x USB - 4 pin USB Type A � 2 x sensor - RJ-45 � 1 x console � SmartConnect
Expansion Slots	1 (total) / 0 (free) x SmartSlot

Dimensions & Weight (Shipping)
