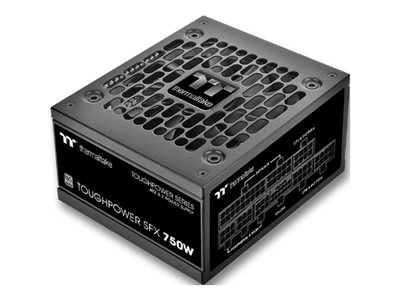

THERMALTAKE TOUGHPOWER SFX 80+ PLATINUM ATX 3.1 STANDARD 750W POWER SU
THERMALTAKE TOUGHPOWER SFX 80+ PLATINUM ATX 3.1 STANDARD 750W POWER SU
- Price:
$192.99
- Availability:
- Mfr #: PS-STP-0750FNFAPU-1
- UNSPSC #: 39121004
- Item #: 011667035
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | SFX to ATX bracket |
| Cables Included | Power 24 pin ATX modular cable 1 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 1.3 ft ¦ 8 pin PCI Express power with detachable 2 pin section modular cable 1.8 ft ¦ 16-pin PCIe 5.0 cable 1.3 ft ¦ 2 x power 15 pin SATA cable 2.5 ft ¦ 4 pin internal power cable 2.5 ft ¦ Floppy adapter 5.9 in |
| MTBF | 100,000 hours |
| Cooling System | 90 mm fan |
| Features | Fluid dynamic bearing cooling fan, fully modular, Intel C6/C7 Sleep State compatible, single 12V rail, low ripple noise, Smart Zero Fan, tight voltage regulation |
| Compliant Standards | FCC, UKCA, ICES, LVD, TUV, cTUVus, CB, CCC, BSMI, S Mark, EAC, RCM |
Dimensions & Weight
| Width | 4.9 in |
| Depth | 4.1 in |
| Height | 2.5 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 7 years |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% (non-condensing) |
General
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | SFX |
| Color | Black |
Power Device
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 16(12+4)pin PCIE 5.0 12VHPWR ¦ 8 x SATA connector ¦ 4 x 4 pin internal power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 18 A ¦ +5V - 18 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Titanium |
