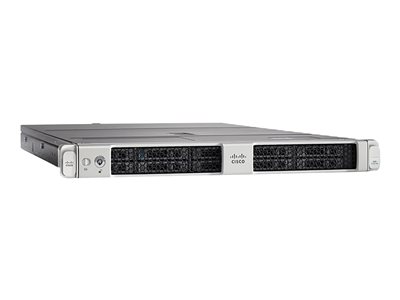

LARGE SECURE NETWORK SERVER CHASSIS FOR ISE APPLICATIONS
LARGE SECURE NETWORK SERVER CHASSIS FOR ISE APPLICATIONS
- Price:
$61,629.99
- Availability:
- Mfr #: SNS-3795-K9-CHAS
- UNSPSC #: 43211501
- Item #: 011676088
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | 47 CFR Part 15 Class A, AS/NZS, AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, Directive 2014/30/EU, Directive 2014/35/EU, EN 300 386, EN 55032 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, GB 4943-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN32 Class A, KN35, UL 60950-1 Second Edition, VCCI Class A, ACPI 4.0 |
Networking
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 4 x 10 Gigabit Ethernet SFP |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | LDAP |
| Remote Management Controller | Intel Baseboard Management Controller (BMC), Cisco Integrated Management Controller |
Dimensions & Weight
| Width | 16.9 in |
| Depth | 29.8 in |
| Height | 1.7 in |
Hard Drive
| Type | No HDD |
Graphics Controller
| Graphics Processor | Matrox G200e |
| Video Memory | 8 MB |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | RAID |
| RAID Level | RAID 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - 90 days - response time: 10 days |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | Status LED, 8 x fans |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 10 |
| Hot-Swap Bays Qty | 10 |
Processor / Chipset
| CPU | Intel Xeon Silver (3rd Gen) 4316 |
| Clock Speed | 2.3 GHz |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
Expansion / Connectivity
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" |
| Slots | 3 (total) / 2 (free) x PCIe x16 ¦ 1 (total) / 1 (free) x mLOM |
| Interfaces | 2 x LAN (1/10 Gigabit Ethernet) - RJ-45 (2 rear) ¦ 4 x LAN (10Gigabit Ethernet) - SFP (4 rear) ¦ 2 x USB 3.0 - Type A (2 rear) ¦ 1 x management (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x VGA - DB-15 (1 rear) ¦ 1 x KVM (1 front) ¦ 1 x serial (RS-232) - RJ-45 (1 rear) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1050 Watt |
RAM
| Installed Size | 256 GB |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Slots | 32 (total) / 24 (empty) |
| Features | Registered |
| Configuration Features | 8 x 32 GB |
Optical Storage
| Type | No optical drive |
