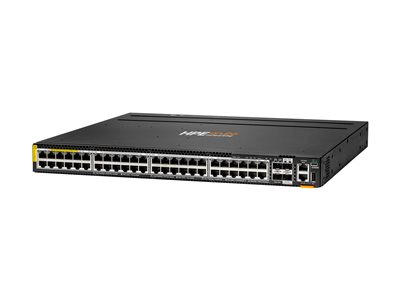

- Product Description HPE Aruba Networking 6300M 48p 10M/100M/1G Class4 PoE 4p SFP56 50G TAA Switch - switch - Max. Stacking Distance 10 kms - 48 ports - managed - rack-mountable - TAA Compliant
- Device Type Switch - 48 ports - L3 - managed - stackable
- Enclosure Type Front and side to back rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
- Power Over Ethernet (PoE) PoE+
- PoE Budget 1600 W
- Performance System switching capacity: 880 Gbps ¦ System throughput capacity: 660 Mpps ¦ Switching capacity: 496 Gbps ¦ Throughput: 369 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Latency (25 Gbps): 1.9 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps ¦ Stacking bandwidth (full-duplex): 400 Gbps ¦ Packet buffer size: 8 MB
- Capacity Switched virtual interfaces (SVIs): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 4096 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192
- MAC Address Table Size 32768 entries
- Jumbo Frame Support 9198 bytes
- Routing Protocol EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
- Features DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB, PoE Class 4
- Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.3af, IEEE 802.3at
- Power Redundancy Optional
- Dimensions (WxDxH) 17.4 in x 15.2 in x 1.7 in
- Weight 12.61 lbs
- TAA Compliant Yes
- Manufacturer Warranty Limited lifetime warranty
|
