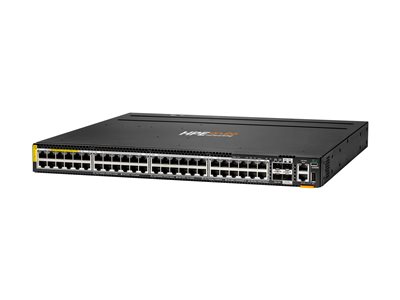

HPE ANW 6300M 48SR5 CL6 POE 4SFP56 TAA
HPE ANW 6300M 48SR5 CL6 POE 4SFP56 TAA
- Price:
$14,903.99
- Availability:
- Mfr #: S0G04A
- UNSPSC #: 43222612
- Item #: 011722225
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Fan tray (field replaceable, hotswappable) |
| Rack Mounting Kit | Included |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, Laser Class 1, UL 60950-1 Second Edition, FCC Part 15 A, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55024:2010, EN 55022:2010 Class A, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, CISPR 35, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, CAN/CSA-C22.2 No. 60950-1-07 |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 17.4 in |
| Depth | 15.2 in |
| Height | 1.7 in |
| Weight | 14.79 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (non-condensing) |
General
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 48 x 100/1000/2.5G/5G (4PPoE) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP56 (uplink / stacking) |
| Power Over Ethernet (PoE) | 4PPoE |
| PoE Budget | 2880 W |
| Performance | Switching capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 4.24 µs ¦ Latency (10 Gbps): 1.5 µs ¦ Latency (25 Gbps): 2.91 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps ¦ Stacking bandwidth (full-duplex): 400 Gbps ¦ Packet buffer size: 8 MB |
| Capacity | Switched virtual interfaces (SVIs): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 4096 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192 |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9198 bytes |
| Max Units In A Stack | 10 |
| Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, PoE Class 6, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB, HPE SmartRate |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
Expansion / Connectivity
| Interfaces | 48 x 100/1000/2.5G/5G (4PPoE) RJ-45 PoE Class 6 - 60 W ¦ 4 x 1Gbit/10Gbit/25Gbit SFP56 uplink/stacking ¦ 1 x USB-C console ¦ 1 x management RJ-45 ¦ 1 x USB Type A host |
Power
| Power Device | Internal power supply (not installed) - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V |
