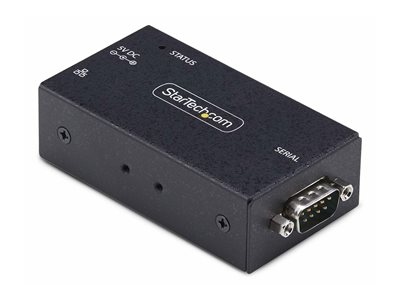

SERIAL TO ETHERNET ADAPTER
SERIAL TO ETHERNET ADAPTER
- Price:
$171.99
- Availability:
- Mfr #: I13-SERIAL-ETHERNET
- UNSPSC #: 26121604
- Item #: 011746127
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Wall mounting kit, DIN-rail mounting kit |
| Compliant Standards | EIA/TIA-232 |
| TAA Compliant | Yes |
Networking
| Form Factor | Wall / DIN rail mountable |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Network / Transport Protocol | Telnet, TCP, UDP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | Telnet, UDP |
| Status Indicators | Link/activity, power, transmit, receive |
| Features | Metal housing, 15 KV Electrostatic Discharge Protection, 8 KV Contact Electrostatic Discharge Protection, auto-negotiation, flow control, adjustable parity, manageable, auto-uplink (auto MDI/MDI-X), full duplex capability |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
General
| Device Type | Device server |
| Width | 3.2 in |
| Depth | 1.8 in |
| Height | 1 in |
| Weight | 5.47 oz |
| Enclosure Color | Black |
Expansion / Connectivity
| Interfaces | 1 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 9.5 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 17.64 oz |
Power
| Power Device | External power adapter |
Software / System Requirements
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 |
