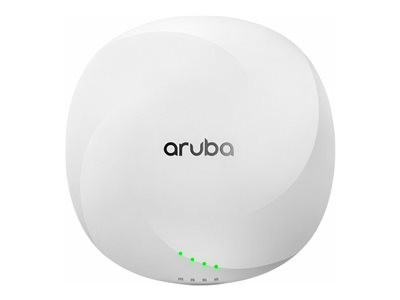

HPE ANW AP-635 US 5PK CAMPUS APPL-VL
HPE ANW AP-635 US 5PK CAMPUS APPL-VL
- Price:
$5,351.99
- Availability:
- Mfr #: S3J36A
- UNSPSC #: 43222631
- Item #: 011764483
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
Miscellaneous
| Included Accessories | Mounting bracket |
| MTBF | 520,000 hours |
| Compliant Standards | UL 2043, FCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, IEC/EN/UL 60950, IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2 |
Networking
| Form Factor | Ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.9 Gbps |
| Line Coding Format | CCK, OFDM, BPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM, DSSS, QPSK |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0 LE, ZigBee |
| Spread Spectrum Method | OFDMA, DSSS, OFDM |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (6 GHz): 2.4 Gbps |
| Capacity | Spatial streams: 2 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
| Status Indicators | System, status, radio |
| Features | HPE SmartRate, 160MHz bandwidth support, reset button, security lock slot (cable lock sold separately), Advanced IoT Coexistence (AIC), Trusted Platform Module (TPM), automatic thermal shutdown, packet aggregation A-MPDU, packet aggregation A-MSDU, MU-MIMO technology, Target Wait Time (TWT), Very High Throughput (VHT) support, Advanced Cellular Coexistence (ACC), Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Space Time Blocking Code (STBC), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC) |
| Encryption Algorithm | WPA2, WPA3, WPA |
| Compliant Standards | IEEE 802.3bz, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3az, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH |
General
| Packaged Quantity | 5 (specifications are for single item) |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 8.7 in |
| Depth | 8.7 in |
| Height | 2 in |
| Weight | 2.87 lbs |
Expansion / Connectivity
| Interfaces | 2 x 2.5 GBase-T ¦ 1 x USB 2.0 (host) - Type A ¦ 1 x console - micro-USB |
Dimensions & Weight (Shipping)
| Shipping Width | 9.8 in |
| Shipping Depth | 9.4 in |
| Shipping Height | 3.3 in |
| Shipping Weight | 3.64 lbs |
Power
| Power Over Ethernet (PoE) Supported | PoE Class 5 |
Antenna
| Antenna | Internal |
| Directivity | Omni-directional |
Software / System Requirements
| OS Required | InstantOS 8.9.0.0, ArubaOS 8.12.0.0 |
