SF SERIES (2024), SF850, 850 WATT, SFX, 80 PLUS PLATINUM, FULLY MODULA

Need Help? Contact Zones Online support at 800.408.9663

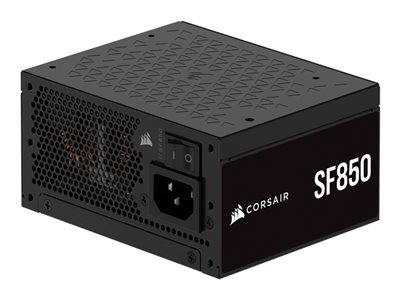

Product Description CORSAIR SF Series SF850 - power supply - 850 Watt
Device Type Power supply - internal
Specification Compliance ATX12V 2.31/ EPS12V 2.92
80 PLUS Certification 80 PLUS Platinum
Localization North America
Input Voltage AC 100-240 V
Output Voltage +3.3, +5, +12 V
Power Capacity 850 Watt
Output Current +3.3V - 20 A � +5V - 20 A � +12V - 70.8 A � +5VSB - 3 A
Output connectors 1 x power 24 pin ATX � 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section � 3 x 8 pin PCI Express power with detachable 2 pin section � 8 x 15 pin Serial ATA power � 3 x 4 pin internal power � 1 x 12VHPWR
Modular Cable Management Yes
Cooling System 92 mm fan
Included Accessories Cable ties, SFX to ATX bracket
Dimensions (WxDxH) 4.9 in x 3.9 in x 2.5 in
Manufacturer Warranty 7-year warranty
